바코드 스캐너 핸디 리더기, ISK(TSK) Scanner (스캔 바코드스캐너),TSK(테크스캔 바코드스캐너)는
USB전용 CCD,Long Range,Laser,무선(블루투스),2D 다양한 종류로 제조 공급되며, Keyboard,USB RS232 등 Interface을 지원 POS 매장,도서,문구,문서,PC방,오락실,게임방,대여점, 제조, 물류,자동화 기타산업현장등 사용함에 적합

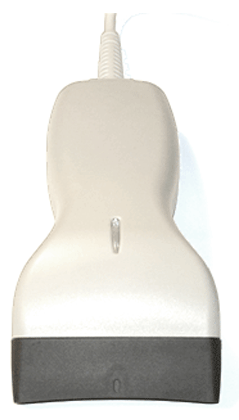

HY-6000<HY6000> 바코드스캐너<CCD Scanner>

Performance Readable angle Forward: 36°
Scan rate 100 scans per second
Resolution 4mil(0.1mm) at contact
Photo sensor 2088 Pixel CCD
Illumination 630nm Visible LED
Field width 80mm 이상
Depth of field 0~100mm (Reading거리)
Symbologies UPC/EAN/JAN, Code 39, Interleaved 2 of 5, Standard 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Codabar, Code 128, MSI, Plessey, Code 93
Interface PS/2 Keyboard wedge, USB, RS-232C
Mechanical Dimesions 170×80×56mm
Weight 125g
Cord 2m straight fixed to scanner
Body Material ABS plastic
Electrical Power Supply 5VDC±10%



ISK-800<TSK800> 바코드스캐너<CCD Scanner>

Performance Readable angle Forward: 10°to Backward: 30°
Scan rate 110 scans per second
Resolution 5mil(0.127mm) at contact
Photo sensor 2160 Pixel Linear CCD
Illumination 660nm Visible Red LEDs
Field width 80mm
Depth of field 0~15mm
Symbologies UPC/EAN/JAN, Code 39, Interleaved 2 of 5, Standard 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Codabar, Code 128, MSI, Plessey, Code 93
Interface IBM PC XT/AT/PS2 Keyboard wedge, Standard RS-232C, TTL serial, Wand emulation, TTL (laser emulation)
Mechanical Dimesions 185×89×66mm
Weight 140g
Cord 2m straight fixed to scanner
Body Material ABS plastic
Electrical Power Supply 5VDC±5%


Contact Type Barcode Scanner TSK750 CCD Scanner

USB:\105,000 PS/2:\95,000

Performance Readable angle Forward: 10°to Backward: 30°
Scan rate 100 scans per second
Resolution 4mil(0.1mm) at contact
Photo sensor 2160 Pixel Linear CCD
Illumination 660nm Visible Red LEDs
Field width 70mm
Depth of field 0~30mm
Symbologies UPC/EAN/JAN, Code 39, Interleaved 2 of 5, Standard 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Codabar, Code 128, MSI, Plessey, Code 93
Interface IBM PC XT/AT/PS2 Keyboard wedge, Standard RS-232C, TTL serial, Wand emulation, TTL (laser emulation),USB
Mechanical Dimesions 170×75×51mm
Weight 120g
Cord 2m straight fixed to scanner
Body Material ABS plastic
Electrical Power Supply 5VDC±5%

TSK750 CCD Scanner Data Sheet

　

ISK-2000<TSK2000> 바코드스캐너<바코드리더기>
<CCD Long Range Scanner>
최저가격:170,000원~190,000원

ISK-2000 Brochure

ISK-2000 Series Long Range CCD Scanner
Model
ISK-2000
ISK-2000M
ISK-2000RF
Standard
Memory Scanner
RF Scanner

Feature

 　

Over 2500 Transaction

64KB Memory for Data
433Mhz Radio Frequency
Optical
 Light Source
Visible Red ( 660 nm )
Scan Rate
200 Scan/Sec
Skew Angle
±65 Degree
Pitch Angle
±65 Degree
Scan Distance
40 ~ 280 mm
Field Width
140 mm ( 15mil )
Resolution
4 mil
Environment
 Temp
0 ~ 50℃ ( Operating )
Storage Temp
-20 ±65℃
Relative Humidity
0 to 95%
Ambient Light
3,000 to 8,000 lux
Housing
ABS
Readable Barcode
UPC/EAN/JAN, Code 39, Interleaved 2 of 5, Standard 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Codabar, Code 128, MSI, Plessey, Code 93
Electrical
 Power
5VDC ±10%
Current
28mA ~ 90mA
Weight
160g
Interface
 USB, IBM PC XT/AT/PS2 Keyboard wedge, Standard RS-232C, TTL serial, Wand emulation
* Specification and features herein are subject to change without notice.


　

ISK-4000<TSK4000> 바코드스캐너<바코드 리더기>
<Laser Scanner>
최저가격:295,000원~310,000원

ISK-4000 Brochure

ISK-4000 Series Laser Scanner
Model
ISK-4000K
ISK-4000R
ISK-4000U
Keyboard
RS-232C
USB
Feature

　
Optical
 Light Source
Visible Laser Diode 670nm ± 10nm
Scan Rate
100 Scan/Sec
Skew Angle
±65 Degree
Pitch Angle
±50 Degree
Scan Distance
50 ~ 280 mm
Field Width
170 mm ( 20mil )
Resolution
4 mil
Environment
 Temp
0 ~ 50℃ ( Operating )
Storage Temp
-20 ±65℃
Relative Humidity
0 to 95%
Ambient Light
3,000 to 8,000 lux
Housing
ABS
Readable Barcode
UPC/EAN/JAN, Code 39, Interleaved 2 of 5, Standard 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Codabar, Code 128, MSI, Plessey, Code 93
Electrical
 Power
5VDC ±10%
Current
28mA ~ 90mA
Weight
160g
Interface
 USB, IBM PC XT/AT/PS2 Keyboard wedge, Standard RS-232C, TTL serial, Wand emulation

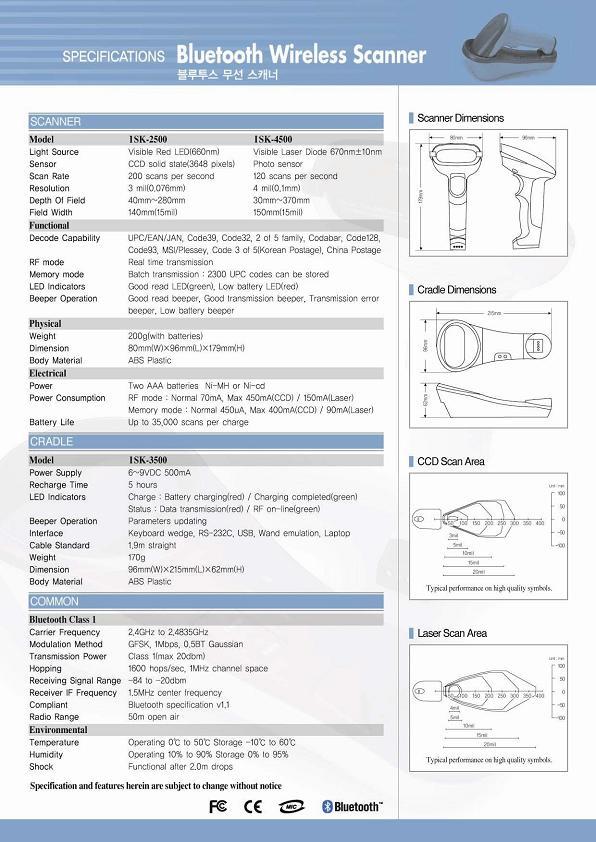

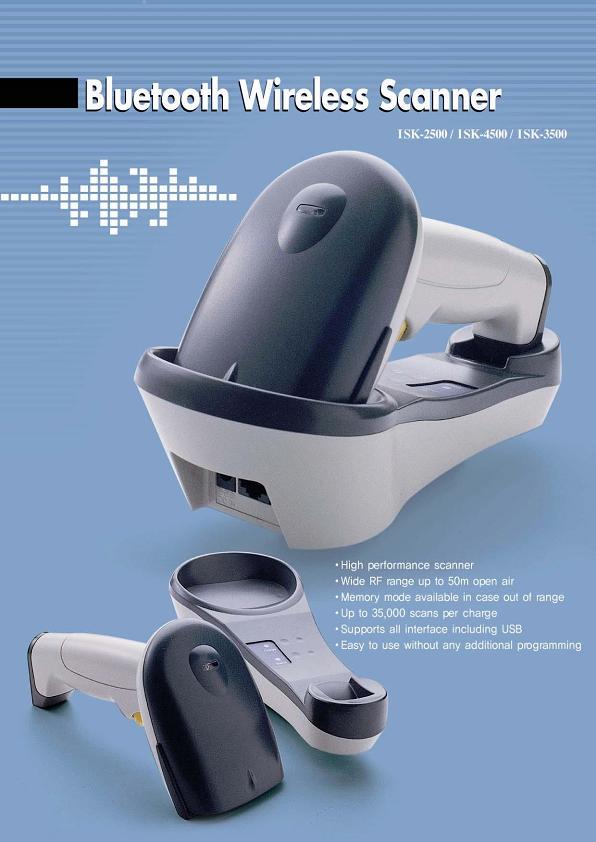

ISK-2500(TSK2500),ISK-4500(TSK4500) :: 블루투스무선스캐너(Scanner)
   * 무선통신직선거리 : 최대 50m
- 1회 충전으로 50,000번 읽음
- 판독폭 : 25 cm
- 판독거리 : 2cm ~ 35cm
- 스캔속도 : 200 scan/sec
- 스캔밀도 : 3 mil (0.075 mm)
- 메모리 :무선영역을 벗어났을시 데이터를 저장할 수 있는 메모리 기능이 있음
       (약 32,768 byte 약2000개바코드저장)
- 인체공학적인 충전기 겸용 크레들

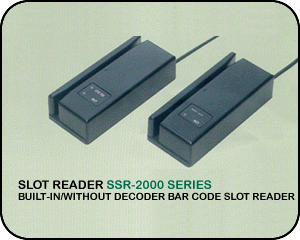

SSR-2000 바코드 카드 리더기 = 바코드 슬롯리더기 :: 바코드 Slot Reader SSR2000
- SSR 2000 시리즈는 디코더 내장형 또는 디코더 필요형 SLOT READER.
- SSR 2000시리즈는 매우 다양한 바코드가 인쇄된 카드, 뱃지, 꼬리표 등을 훌륭히 독취.
- SSR 2000 시리즈는 INFRARED와 VISIBLE등의 광학 시스템이 가능.
- 광학계, 전기부품 및 모든 부품이 견고한 철제구조 안에 구성되어 열악한 환경 사용 가능.
- 독취는 양방향이 가능하고 6개 종류의 바코드 독취가 가능.
  SSR-2000 (IR) SSR-2010 (VISIBLE)
LIGHT SOURCE 940nm, INFRARED 660nm (RED)
RESOLUTION 5mil(0,13mm)
PCS OVER 0.6
DOF ~80 mil
SCAN SPEED 2~40 IPS
POWER SOURCE +5V + 10%
POWER CONSUMPTION 15mA 20mA
OUTPUT TTL(normal High)
AMBIENT LIGHT REJECTION 3000 lux(fluorescent)
CASE METAL CASTING
DIMENSION 127 * 54 * 30mm (5 * 2.1 * 1.2 inch)
WEIGHT 250g
CABLE 1.5m, STRAIGHT


TSK-1000M Fixed scanner 바코드 리더기 : 무인요금정산기, KIOSK, ATM, Machine 용
       - Scan Rate : 100 scan/s
       - Light Source : Visible Red ( 660 nm )
       - Resolution : 5Mil
       - CPU : 32Bit
       - 스캔거리 : 40~100mm
       - Interface : K/W, RS-232, USB
       - 용도 : KIOSK ,ATM, Vending Machine 용

TSK-1000M DataSheet



Unitech MS 320 CCD Long Range scanner : 1D, PDF417, MS-320 바코드스캐너

       - Scan Rate : 200 scan/s
       - Light Source : Visible Red ( 660 nm )
       - Resolution : 4Mil
       - 스캔거리 : 120mm
       - Interface : K/W, RS-232, USB
Unitech MS-320 DataSheet
