바코드마트 - barcode OEM Scan Engines Mobile 2D Barcode Scanner 바코드 스캔엔진, OEM 스캔 엔진 Motorola,1D,2D 스캔엔진 CSE6000 CSE7000 Mobile Payment ::- 아이컴정보시스템

최소형 2D Barcode Scan Engine CSE-6000, CSI-6000 : 1D,2D 디코더 일체형 스캔 엔진
- 모바일결제시스템 Mobile Payment Ssolution Barcode 1D,2D,QR code Scan Engine
iPod Touch,iPhone,iPad,Smartphone usage for in-store mobility-Payment Solution

                        - World-wide smallest Miniature style. [20mm(W)*12.5mm(H)*17.5(D)
                        - All-in-One Model. (Light LED + Image Sensor Module + Decoding Module)BR>                         - Wide Viewing Angle. (Wide ±53º, Standard ±40º
                        - Red / Green / Blue or White LED Lighting Architecture for various target material
                        - Smart Laser Aiming
                        - Real-time Image Uploading. (within JPEG Engine)
                        - SDK(CSE-6000SDK) for test and evaluation
                        - CSI-6000 is new small Imager for OEM systems & hardwares

2D Barcode Scan Engine CSE-6000, CSI-6000 Data Sheet

Motorola Symbol SE4400,PL4407 OEM Imager Scan Engine : 1D,2D 바코드 스캔 엔진

                        - Miniature form factor
                        - 2D VGA CCD sensor
                        - Bi-focus system
                        - Aiming system
                        - Illumination
                        - Simple Serial Interface (SSI)
                        - Optional Software Developer's Kit (SDK)
                        - 1D,2D Symbol SE4400,PL4407

Symbol SE4400 PL4407 OEM Imager Scan Engine Data Sheet

Motorola Symbol SE4500,PL4507 OEM Imager Scan Engine : 1D,2D 바코드 스캔 엔진

                        - 624 MHz microprocessor
                        - 2D VGA CCD sensor
                        - Range선택: SR,DL,HD
                        - Aiming system
                        - Illumination
                        - Simple Serial Interface (SSI)
                        - Optional Software Developer's Kit (SDK)
                        - 1D,2D Symbol SE4500,PL4507

Symbol SE4500 PL4507 OEM Imager Scan Engine Data Sheet

Motorola Symbol SE950,955 OEM Laser Scan Engine : 1D(1차원) 바코드 스캔 엔진

                        - Miniature form factor
                        - 1D Laser
                        - Single line
                        - 104 scans/second ± 12 scans/second
                        - 47° ± 3° default / 35° ± 3° reduced
                        - 0.28 oz. (< 8g )
                        - SE 950: 0.46H x 0.85W x 0.61D in. max
                        - 3.3v ± 10%

Symbol SE95X OEM Laser Scan Engine Data Sheet

HONEYWELL 3800e,5X00,5X1/5X80 OEM Scan Engine : 바코드 스캔 엔진

- 3800E Linear Imager Engine ? HONEYWELL (HAND HELD PRODUCTS)
The 3800E is a cost-effective way to add high performance scanning of linear bar codes in one space saving, easy to install configuration
- 5X00 Engine Optical Subassembly and Licensed Decoder ? HONEYWELL (HAND HELD PRODUCTS)
Compact and durable, the 5X00 is ideal for most general purpose data collection applications.
- 5X10/5X80 Decoded Miniature Image Engines ? HONEYWELL (HAND HELD PRODUCTS) The 5X10/5X80 decoder module combines a compact, lightweight optical module and decoder board
to deliver an easy-to-integrate decoding subsystem that is ideal for most data capture applications.

honeywell 5X10-80 Scan Engine Data Sheet

아이폰,안드로이드폰,옴니폰,MS폰,스마트폰 간- Bluetooth 통신 바코드 스캔 핸디 터미널

코암텍 Compact Data Collector(1D,2D 바코드스캐너) : KDC100, KDC200, KDC300

::: Koamtac Compact Data Collector 제품 개요 :::

                        - 세계 최소형 슬림 타입
                        - 선명한 OLED 화면
                        - 다양한 유/무선 통신
                        - Bluetooth, Serial & USB
                        - Li-Polymer 충전지 내장
                        - 내장 메모리 탑재
                        - 최고 성능의 Laser Scan Engine 탑재
                        - 10,000개 이상의 Scan결과 저장

          : S/W 기술 지원
          - Sync Software & Keyboard Emulator
             - KT Sync(KDC용 Sync프로그램)는 사용자가 쉽게 스캔한 결과를 PC에 전달 할 수 있게 해 줌
             - Sync시 PC의 Time Data를 동기화함으로써 본체 내장 타이머의 신뢰성 보장
          - SDK 지원
             - 고객이 직접 Application을 개발 하고자 할 경우, KDC의 SDK를 이용하여 개발 할 수 있도록 지원 함

                        - KDC100 :1D Laser scan engine,USB Type A connector
                        - KDC200 :1D Laser scan engine, Bluetooth V2.0+EDR, Class 2, SPP (Serial Port)
                        - KDC300 :1D,2D.OCR Imager scan engine, Bluetooth V2.0+EDR, Class 2, SPP (USB)
                        ** 아이폰 iPhone (아이패드) 연동 바코드스캐너는 KDCi시리즈 : KDC200i:1D, KDC300i:2D,OCR

KDC-100 Data Sheet : (1D/유선통신)
KDC-200 Data Sheet : (1D/PDF417/ 유/무선통신)
KDC-300 Data Sheet : (1D/2D 유/무선통신)
자료실 다운 -- KDC100, KDC200, KDC300 메뉴얼, S/W, SDK ,자료 -- Koamtac_Support

스마튼폰 연동 바코드스캐너 1D,2D 리더시스템

갤럭시탭 키보드웨지 연동 바코드스캐너 1D,2D 리딩시스템

갤럭시 시리얼통신 연동 바코드스캐너 1D,2D 리딩시스템

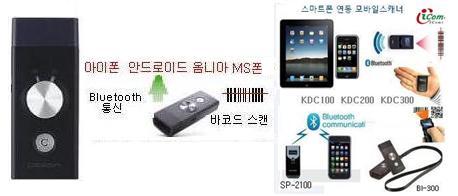

모바일바코드스캐너:스캔폰:BI-300 Data Collector(1D,2D바코드스캐너)

::: BI 300 Data Collector 제품 특징 :::

                        - 무선 통신 Bluetooth를 적용한 Cordless Barcode Scanner
                        - 36x85x19mm의 초소형, 초경량 Barcode Scanner
                        - 1D, 2D 선택적 바코드 모듈 적용이 가능한 Optional Barcode Scanner
                        - 사용성이 강조된 Barcode Scan Button의 Point
                        - Barcode Scan 15,000회 이상을 지원하는 강력한 Battery
                        - CPU : SAMSUNG S3C2440A40 400MHz
                        - OS : Linux
                        - Memory : RAM : 16MB, ROM : 32MB
                        - Radio : Bluetooth Class 2, 최대 10m
                        - Interface : RS-232C, USB Client, Keyboard Wedge
                        - Barcode Engine : 1D & 2D(Only PDF417) Laser or 1D & 2D CMOS
                        - Battery : 710mAh Li-ion Battery
                        - Environment : Drop : 1.5M, IP30, 작동온도 : -5 ~ 40°C, 습도 : 5~95%
                        - Dimension : Size : 36 x 85 x19 mm, 무게: 54g(배터리 포함)
                        - Accessory : 충전기, 데이터 케이블, 목걸이, 밸트 클립 파우치
