::Cipherlab Barcode Scanner Cipherlab Scanner :사이퍼랩 바코드스캐너,바코드리더,핸디터미널
    CCD Scnaner제품은 특히 저가형으로 매장,창고,일반용도로 다양하게 SOLUTION 시스템 구축적합

    Cipherlab 싸이퍼랩 스캐너,터미널 CL1000 1090 1100 1300 1310 CL1105 1200 CPT711 CPT8020 8021 CPT8000 8001
    1502 laser scanner 1504A corded 2D Scanner 1704 2D Scanner 2500 Rugged Scanner 1860 RFID Reader
     RS50 RS31 Mobile Computer 9700 Mobile Computer CP60 CP55 CP50 8600 8400 8300 8200 8000 Series









CIPHERLab : MS-1000
( CL1000 CCD 바코드 스캐너 )

CL1000U,CL1000R CCD BARCODE SCANNER(: 바코드리더)

Optical Sensor: 2048 Pixe(sensor width=200£gm)
     Light Source: Red LED (660mm)
     Resolution: 0.125mm(1067)-0.15mm
     Depth of Field: 0~10mm
     Width of Field: 67mm
     PCS: 0.45
     Scanning Engine: 100 scans/sec
     16Bit CMOS CPU
     Ambient Light Rejection:
       1200lux(Direct sun-light)
       2500lux(Fluorescent light)

Cipher lab 1000K CCD Scanner DataSheet







CIPHERLab : CL1100,1105 Linear
( CL1105 CCD 바코드 스캐너 )

CL1100 1105 Linear Scanner(CCD Long Range 바코드리더)

Interface : Keyboard Wedge(PS/2),USB,RS-232
     Light Source: Red LED (630mm)
     Resolution: 0.125mm(1067)-0.15mm
     바코드 리딩거리 : 바코드밀도에 따라 변경(Max 290mm)
     바코드 리링 폭 : 바코드밀도에 따라 변경(Max 200mm)
     PCS: 0.45
     Scanning Engine: 100 scans/sec
     16Bit CMOS CPU
     Ambient Light Rejection:
       1000lux(Direct sun-light)
       2000lux(Fluorescent light)

Cipher lab 1100 Line Scanner DataSheet

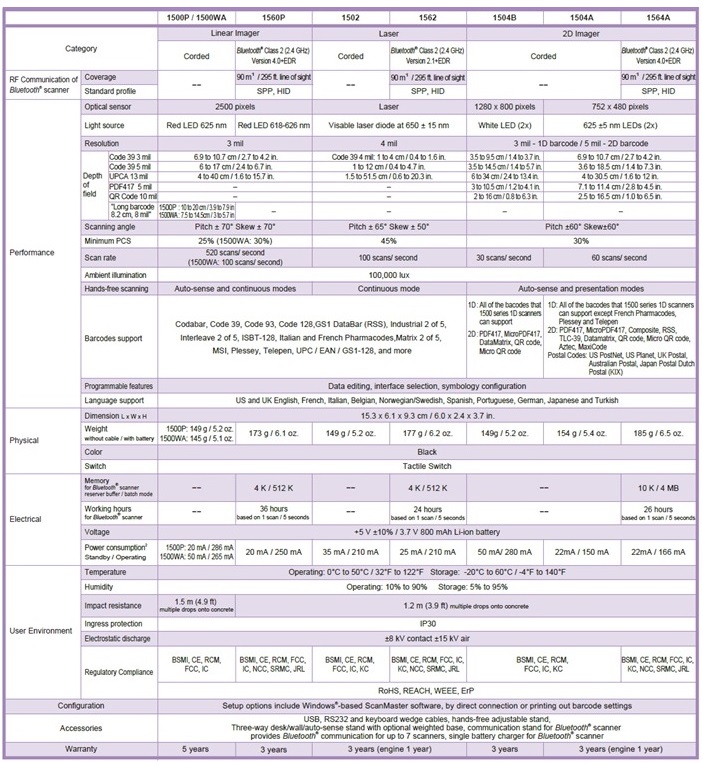

Cipherlab 1564A (1500series)
( 2D 무선 바코드스캐너 )

CL1564A 1500시리즈 2D Scanner(2D,QR 무선 바코드스캐너)

Interface : Keyboard Wedge(PS/2),USB,RS-232
     Light Source: White LED (2x), 625 ±5 nm LEDs (2x)
     Resolution: 3 mil - 1D barcode / 5 mil - 2D barcode
     바코드 리딩거리 : 바코드밀도에 따라 변경
     바코드 리링 폭 : 바코드밀도에 따라 변경
     PCS : 30%
     Scanning Engine: 30, 60 scans/ second
     Ingress protection : IP30
     RF Communication of Bluetooth:
       90 m (Bluetooth® Class 2 (2.4 GHz))

CipherLab_1500 series_Barcode_Scanner DataSheet

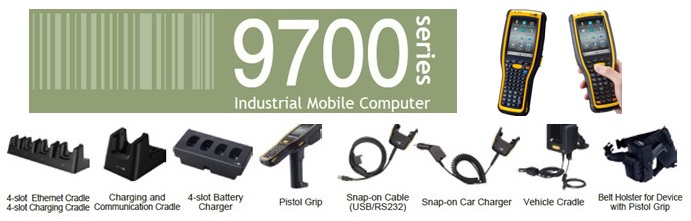

Cipherlab 9700 산업용 PDA
( 9700 Series 모바일컴퓨터)

Cipherlab 9700 산업용 PDA 터미널 1D,2D 사이퍼랩 산업용단말기

Interface : Operating System : Windows® CE 6.0, Android 6.0
     CPU : TI OMAP 3730 1GHz , Cortex A53 Octa-core Up to 2.0 GHz
     Display : 3.5” VGA/ QVGA TFT color LCD
     Keypad : 30-key / 38-Key Numeric and 53-Key Alphanumeric
     Size (LxWxH ) : 214 mm x 87 mm x 47 mm
     Wireless Communication : WLAN, WLAN security, WPAN
     Barcode scanning : 1D Laser , 2D Imager
     Impact resistance : IP65
     Weight (Laser Including Battery) :
       447g (3600 mAh) / 478g (5400 mAh)

CipherLab_CipherLab 9700 Series PDA DataSheet

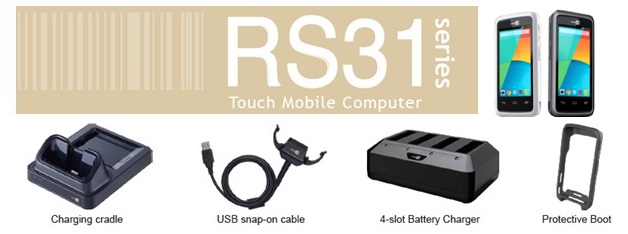

Cipherlab RS-31 산업용 PDA
(RS31 모바일컴퓨터)

Cipherlab RS31 산업용 PDA 터미널 1D,2D 사이퍼랩 산업용단말기

Interface : Operating System : Android 6.0
     CPU : CPU Cortex A53 Quad-core 1.3GHz
     Display : 4.7'' HD 720 (W) x 1280 (H), Transmissive IPS LCD
     Keypad : scan key, 4 programmable keys, volume up and down
     Size (LxWxH ) :159 x 80 x 17.3 mm
     Wireless Communication : WLAN, WLAN security, WPAN
     Barcode scanning : Linear imager / Laser / 2D imager
     Impact resistance : IP67
     Weight :
       Under 260 g (2D imager with battery)

싸이퍼랩 PDA RS31 2D 안드로이드 DataSheet










1045 FIXED CCD SCANNERS(: 바코드 리더)
     Optical Sensor: 2048 Pixe(sensor width=200£gm)
     Light Source: Red LED (660mm)
     Resolution: 0.125mm
     Depth of Field: 68mm(0.33mm)
     Width of Field: 124mm(PCS=0.9)
     PCS: 0.45 or more
     Scanning Rate: 80 Scans/Sec
     Ambient Light Rejection:
        1200lux(Direct sun-light)
        2500lux(Fluorescent light)








1022 BARCODE SLOT READERS(: 바코드 슬롯 리더기)
     Light Source: Infra-Red(940nm)Visible Red(660nm)
     Resolution: 0.15mm
     Card Thickness: 0.5-1.5mm
     Minimum PCS: 0.5
     Scanning Speed: 100-1000 mm/sec
     Scanning Position: 11 mm from slid bed(7.5&13.5mm available)







1023 MAGNETIC STRIPE READERS(: 마그네틱 슬롯 리더)
     Voltage: +5v+/-10%
     Power Consumption: <35mA
     Operation (Maximum)  (Typical): <25mA
     Temperature(operating): 0C~50C
     Temperature(storage): -20C~60C
     Humidity(operating): 20%~90(non-condensing)
     Humidity(storage): 10%~95(non-condensing)

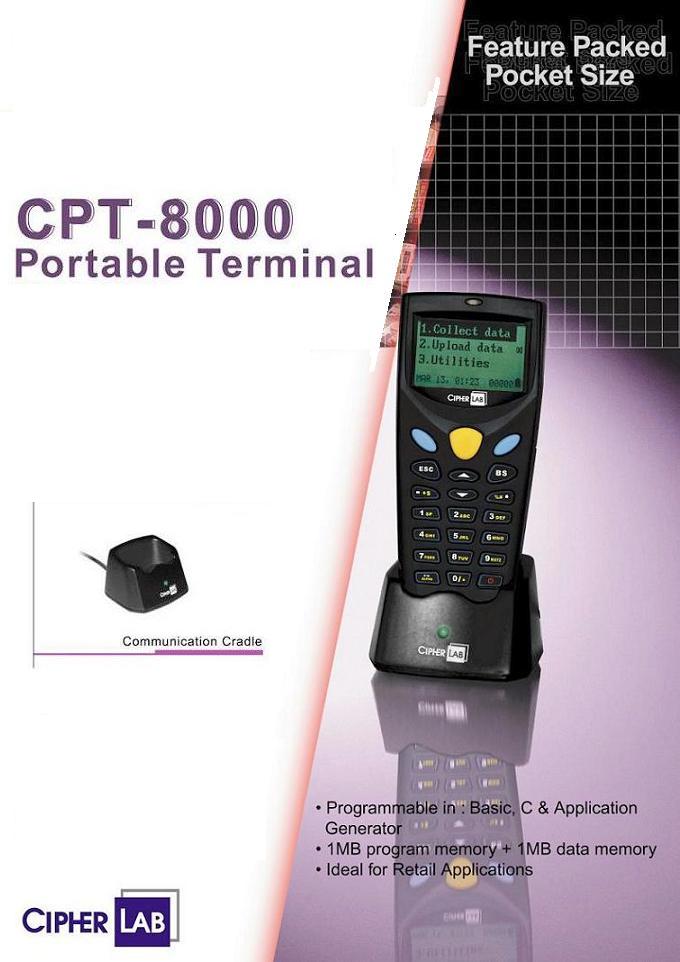

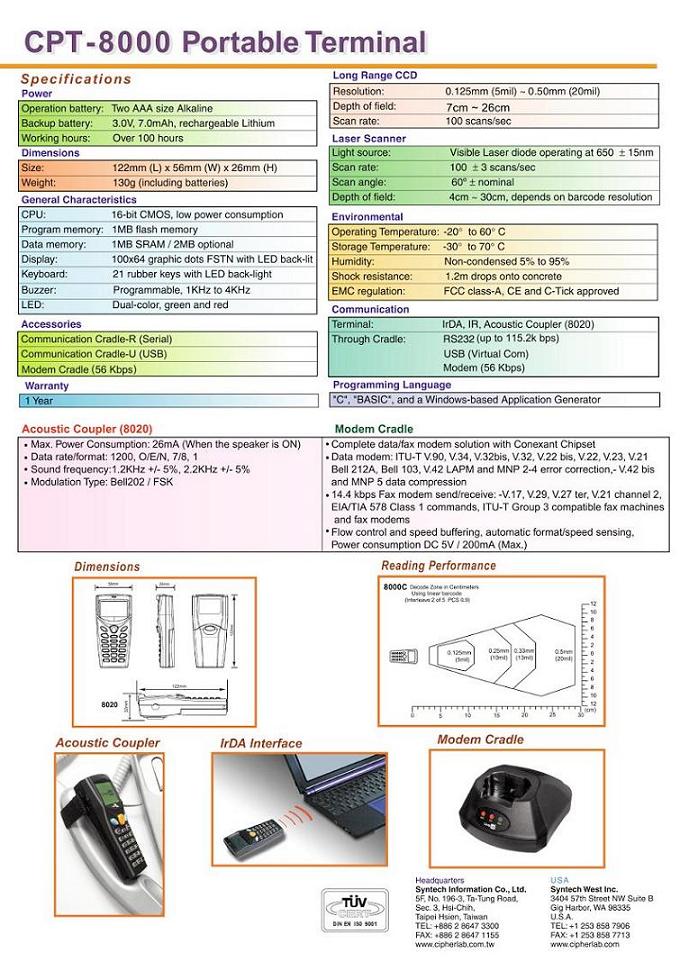

< 초소형,저가형 바코드 핸디터미널:CPT-8000 ; 일반 건전지 사용 >

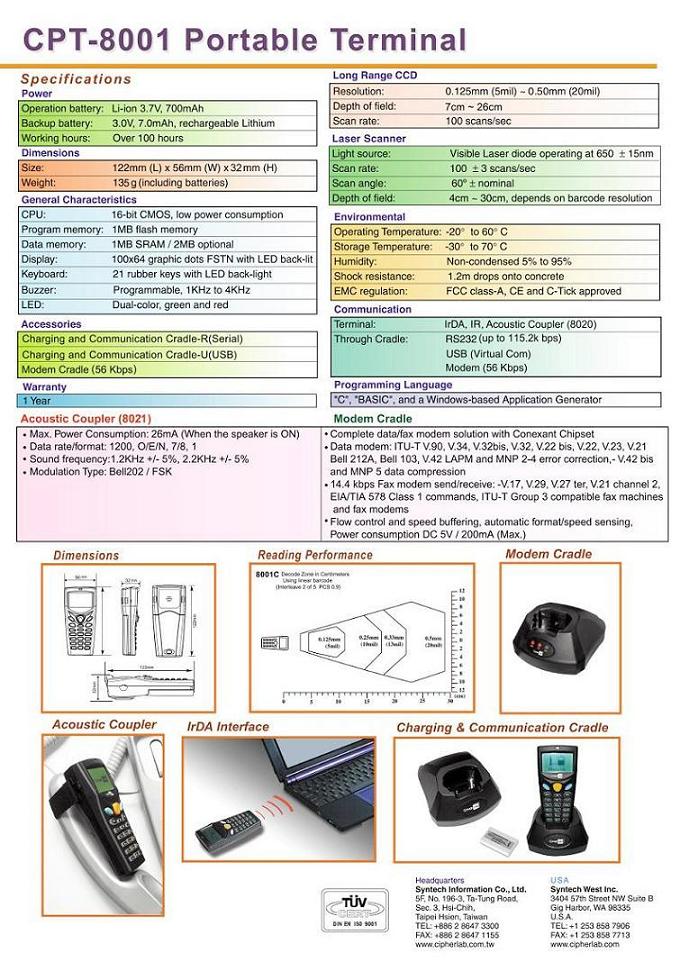

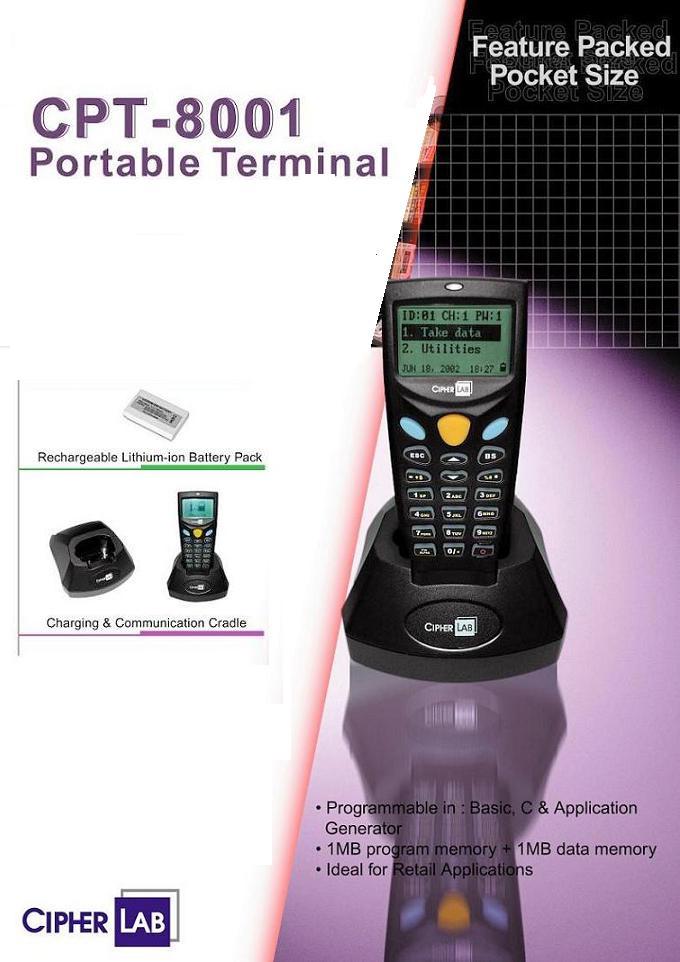

< 초소형,저가형 바코드 핸디터미널 : CPT-8001 ; 충전 밧데리 사용 >


CIPHER Lab Barcode Scanner
CIPHER Lab Hand Held Scanners : 1000 CCD Scanner 1100 RETAIL Linear Imaging Scanner 1300 Linear Imaging Scanner 1310 Memory Scanner 1105 Entry Level Scanner
CIPHER LabBatch Terminals Retail and General Purpose Terminals : CPT-711 Portable Terminal CPT-8020/8021 Acoustic Coupler Terminal CPT-8000/8001 Portable Terminal 8300 SERIES Portable Terminal
1000 CCD Scanner,View Image 1100 RETAIL Linear Imaging Scanner ,1300 Linear Imaging Scanner,1310 Memory Scanner 1105 Entry Level Scanner,1200 RETAIL LASER Scanner
