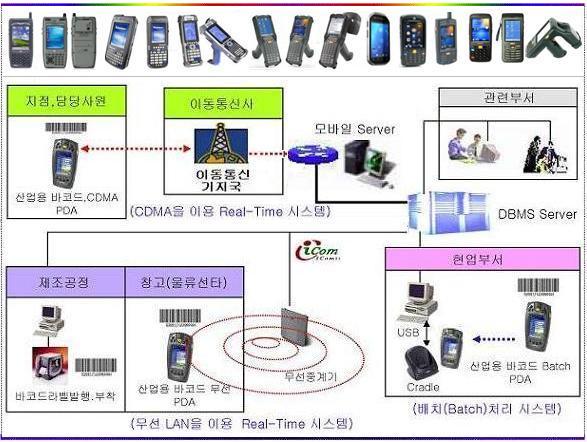

산업용PDA 터미널 Real-Time,Batch기능 바코드,WLAN,CDMA 모바일시스템
Symbol 모바일 산업용 PDA Terminal 바코드,무선LAN,RFID : MC35,MC70,PPT8846,MC3090,MC9090
모바일 산업용 PDA Terminal 바코드 무선LAN,CDMA : MC3000,MC9090G,M3,M3+ UD710(UD711W)
 |
적용분야 : 생산관리,물류창고관리,설비이력,자산,서고,문서,공사현장인력,영업,판매관리,기타
|
산업용PDA(바코드,무선LAN,CDMA) :M35,MC50,MC70,UD710,MC3000,MC9090G,M3,M3+
산업용PDA 핸디터미널(1차원,2차원바코드):Symbol MC3000 MC3090 MC3090G 모바일터미널
|
|
|
|
|
:: 산업용PDA Symbol MC3000 DataSheet ::
:: 산업용PDA Symbol MC3090 DataSheet ::
|
|
산업용PDA 핸디터미널(1D,2D 바코드):Symbol MC9090-G MC9090K MC9090K 모바일터미널
|
|
|
|
|

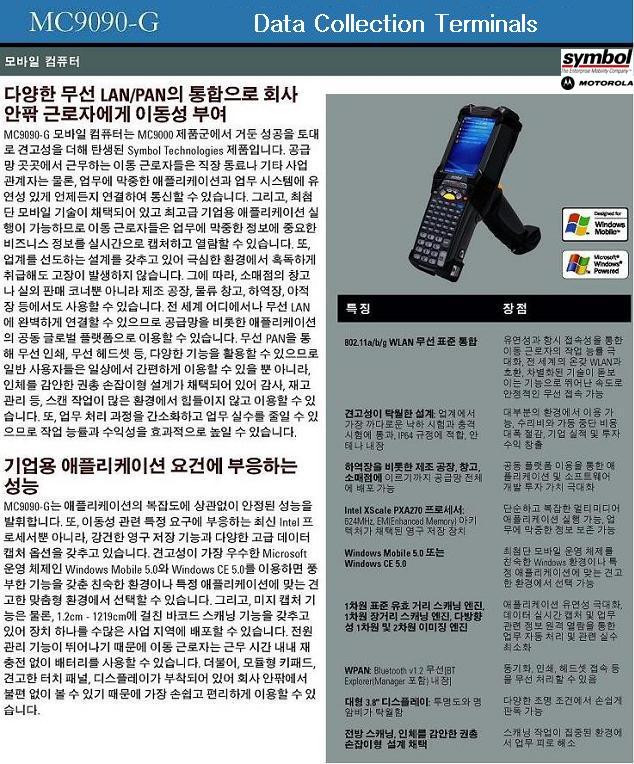

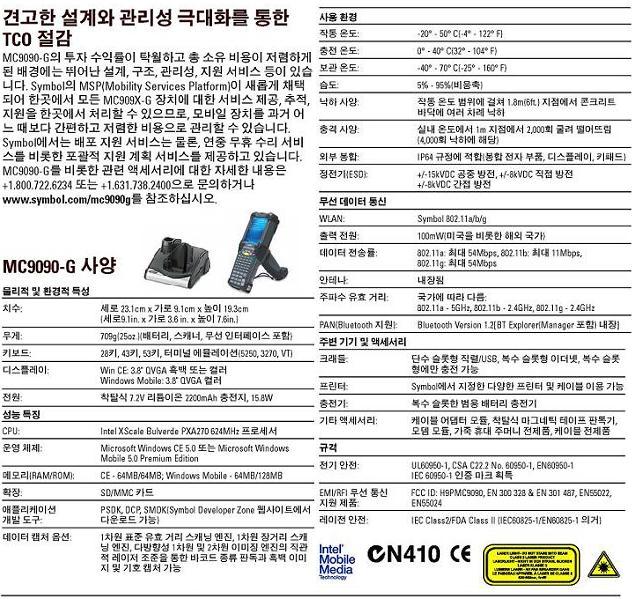

:: 산업용PDA Symbol MC9090-G 한글 DataSheet ::
:: 산업용PDA Symbol MC9090-G 영문 DataSheet ::
|

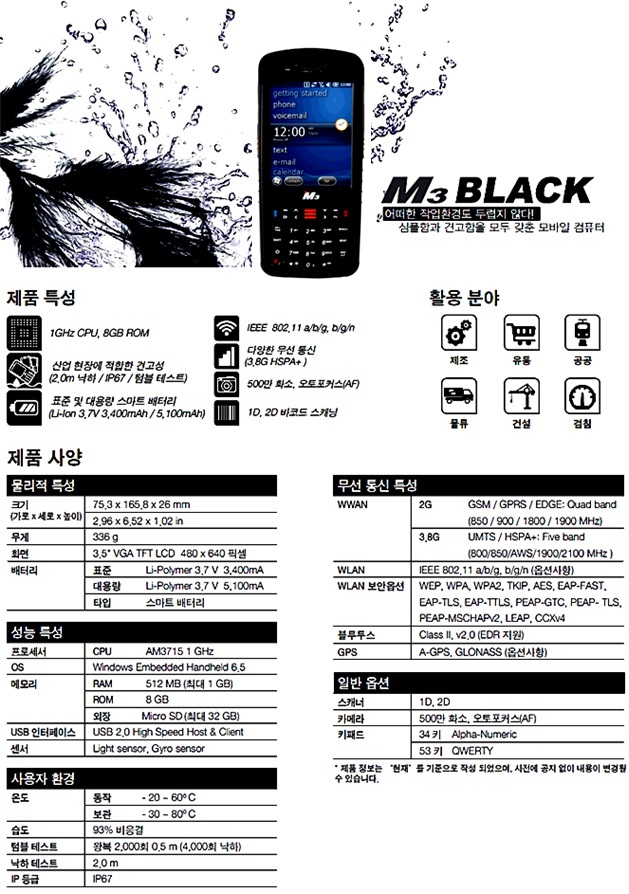

<산업용PDA(1D,2D)무선LAN,CDMA: M3 (MC-6300S,MC-6400S), M3 Plus (MC-6500S)>
|
|
산업용 PDA M3 (MC-6300S,MC-6400S Data Sheet
|

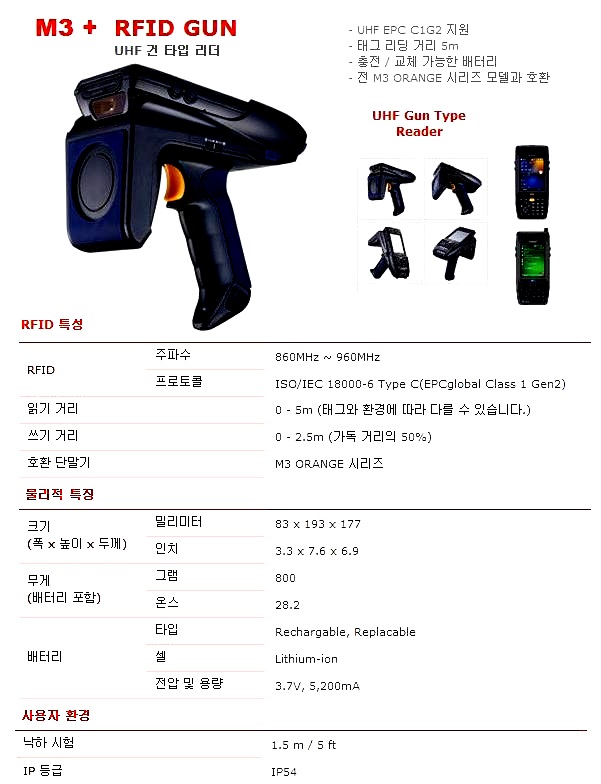

< 산업용PDA M3 Plus(1차원바코드,2차원바코드),무선LAN,CDMA : M3 Plus (MC-6500S)>
- CPU : Intel PXA-270 520MHz (최대 624MHz)
- OS : Window CE 5.0
- Memory : 64MB NAND Flash ROM (최대 512MB 확장가능) 64MB RAM
- Expansion Slot : Compact Flash Type I & SD/MMC Slots
- Communication : CDMA2000-1x or EGSM/GPRS, WLAN, Bluetooth, USB Host/Slave
- KEY : 3 x 4 dial, 4direction, 7 function (5front,4side), 1 Power
- 바코드스캐너 : 1 ,2 차원 바코드 모듈 내장형
- Display : 240 x 320, 3.5”, 26만Color TFT LCD
- Weight : 300g
|
산업용PDA M3 Plus Data Sheet
|

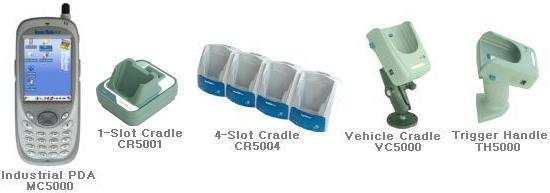

산업용PDA 핸디터미널(1차원,2차원바코드용,무선(WLAN),불루투스,CDMA ) : MC-5000
|
|
|

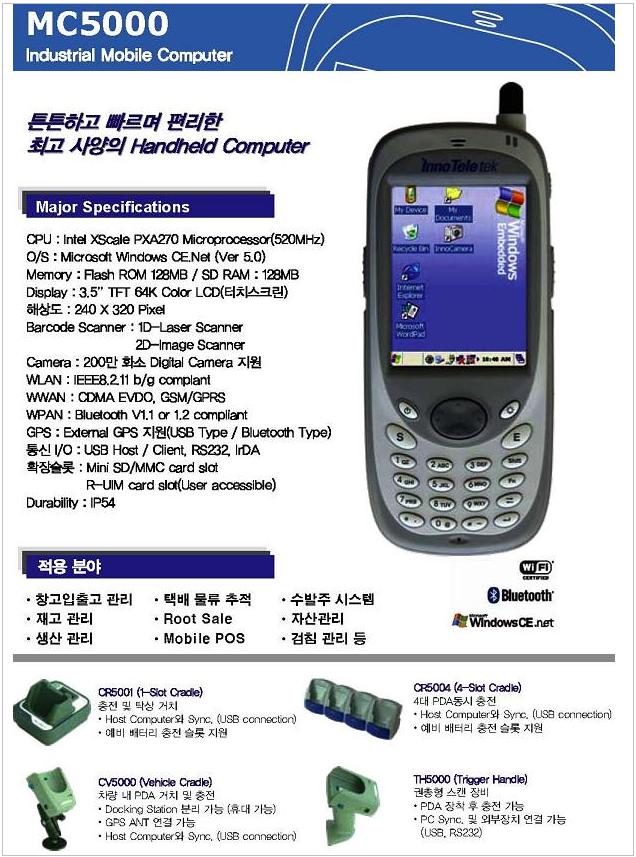

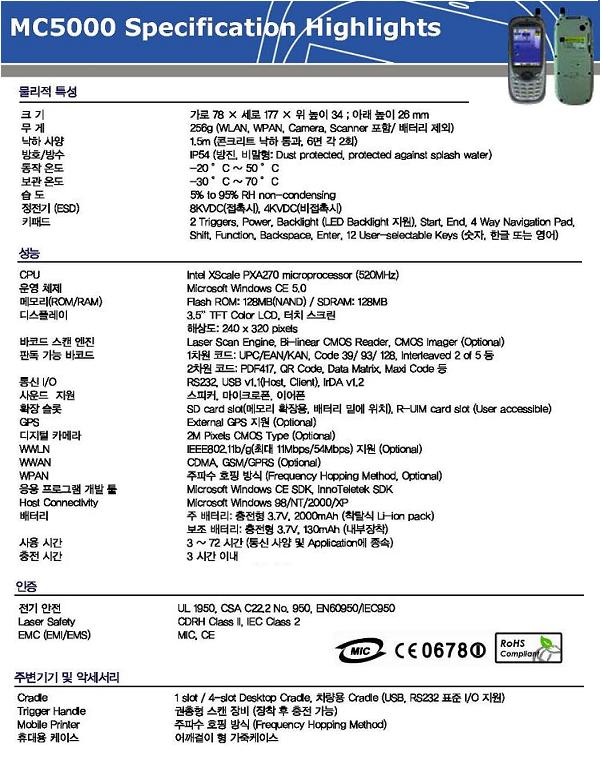

:: 산업용PDA MC 5000 DataSheet ::
|
< 산업용PDA MC5000(1차원바코드,2차원바코드용) 무선LAN,CDMA : MC5000 >
|
|

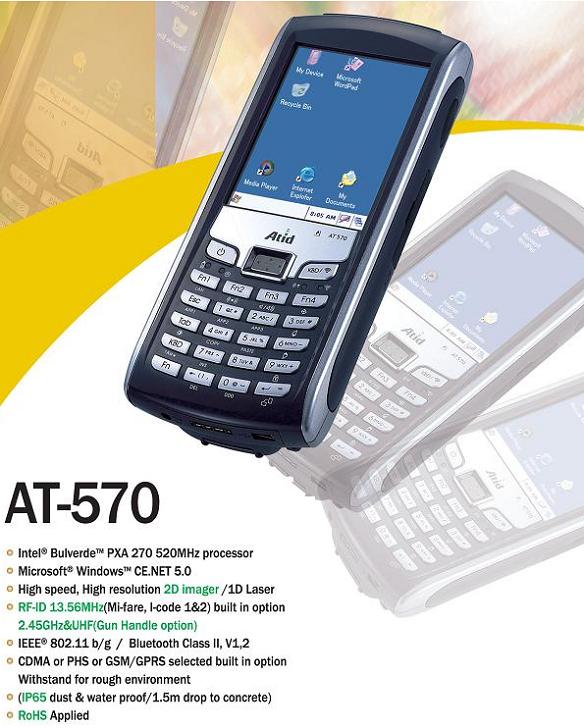

산업용PDA:AT-570 바코드용,산업용PDA AT-570 RFID:바코드+RFID용(13.56MHz,900MHz)
|
|
|
|

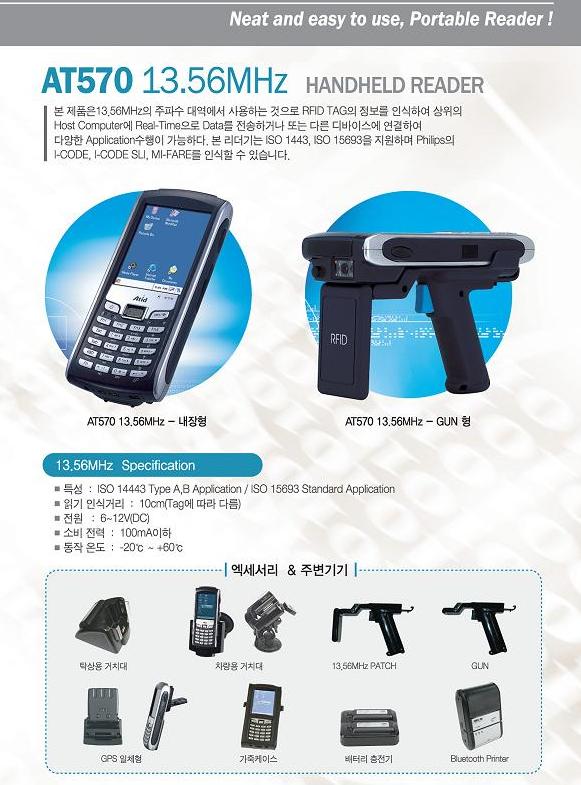

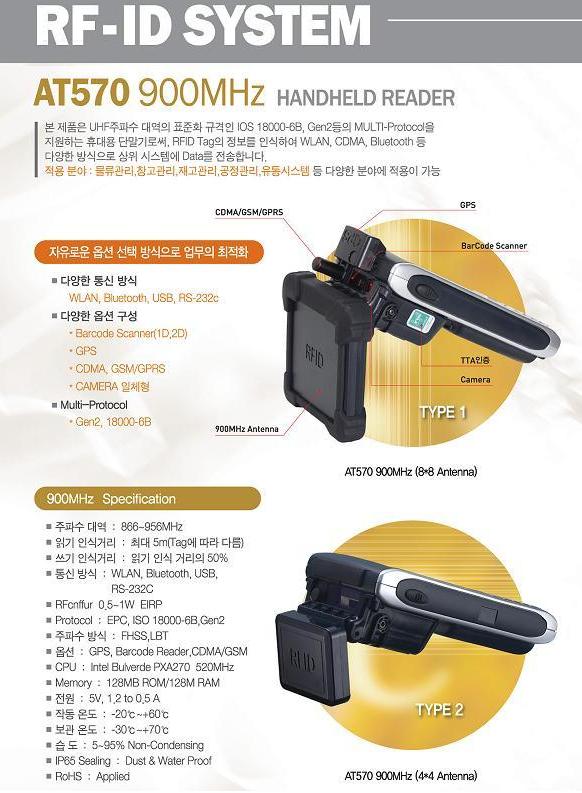

:: 산업용PDA AT-570 RFID DataSheet ::
|

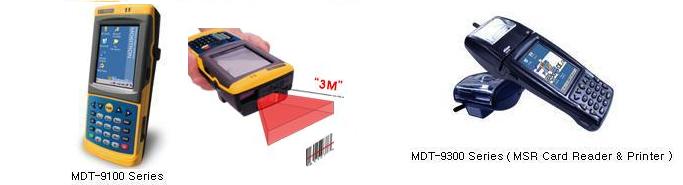

< 산업용PDA 터미널(1D,2D,Long Range용) 무선LAN,CDMA,RFID: MDT9100 , MDT9300 >
|
|
:::::: MDT-9100 Series (MDT-9110, MDT-9110L, MDT-9120, MDT-9130) ::::::
* XScale PXA270 520MHz processor
* 128MB RAM, 192MB Flash
* 3.5” Color Touch Screen TFT LCD
* Barcode Scanner(1D Scanner/2D Imager Scanner)
* WiFi,CDMA,GSM/GPRS,RFID, Bluetooth
* Windows CE 5.0
* SDK Tool Kits be supported
( 상 세 사 양 )
- CPU : XScale PXA270 520MHz processor
- Memory : 128MB RAM, 192MB Flash
- Display : 3.5” TFT touch screen LCD, 65K colors
- Key pad : Qwerty type / 25 keypads type(optional)
- CDMA : CDMA 2000 1xRTT, EVDO
- GSM/GPRS : Multi-Band GSM/GPRS, HSDPA
- Wireless LAN : IEEE802.11 b/g compliant
- Bluetooth : V1.1 or V1.2 Compliant, class 2
- RFID : NFC enabled, ISO 14443A, ISO 14443B, ISO 15693, Mifare
- Barcode Scanner :1D or 2D , Long range Scanner Supported
- I/O : USB Host, USB Client, serial
- Audio : Speaker
- Camera : 1.3 Mega Pixels (optional)
- CF Slot : CF Type I, II / SD/MMC SDIO, SD, MMC
- SD Slot : SDIO, SD, MMC
- Battery : Lithium Polymer Type, 4.2V/2,650mA X 1Cells ,4.2V Li-lon 200mAh(Backup battery)
- OS : Windows CE 5.0
- Software : Microsoft internet explorer 6.0 web browser for Windows CE 5.0
- Durability : Drop tested from 1.2m to concrete, sealed according to IP54
- Operating temperature : -20°C ~ 50°C
- Dimension(LxWxH) : 82 x 190 x 45
- Weight : 300g
:::::: MDT-9300 Series (MDT-9301, MDT-9302, MDT-9303, MDT-9304, MDT-9305) ::::::
* Intel XScale 400MHz processor
* 64MB RAM, 64MB (128MB optional) Flash
* 3.5” Color Touch Screen TFT LCD
* Wireless LAN
* MSR Card Reader & Printer
* Windows CE.Net
* SDK Tool Kits be support
|

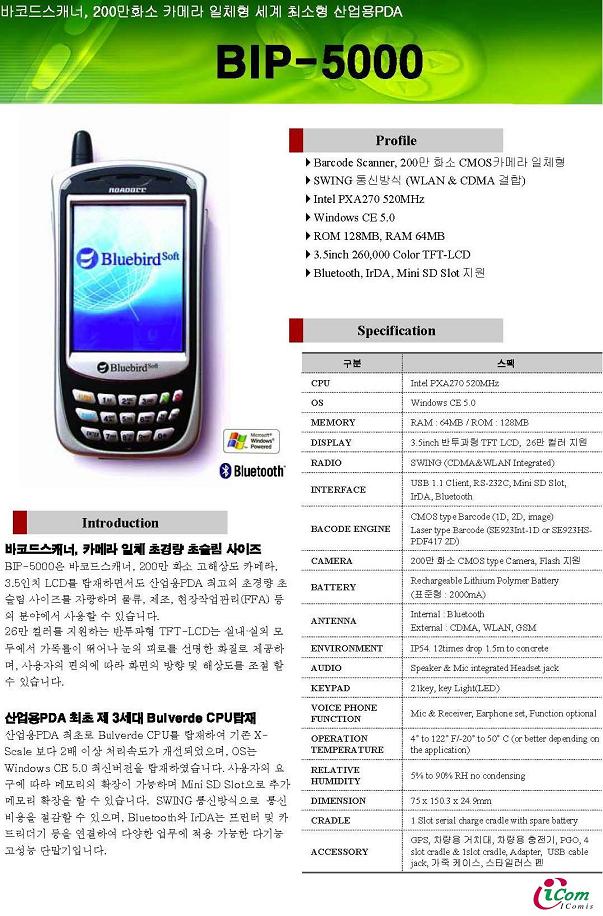

산업용PDA 핸디터미널(1차원바코드,2차원바코드용) : BIP5000
|
|
산업용PDA(바코드,무선LAN,CDMA) :M35,MC50,MC70,UD710,MC3000,M3,M3+,BIP5000

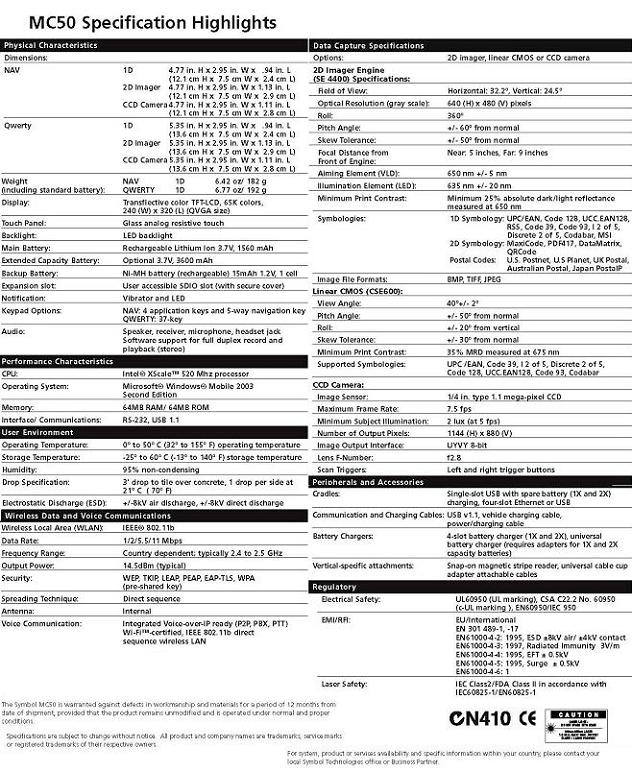

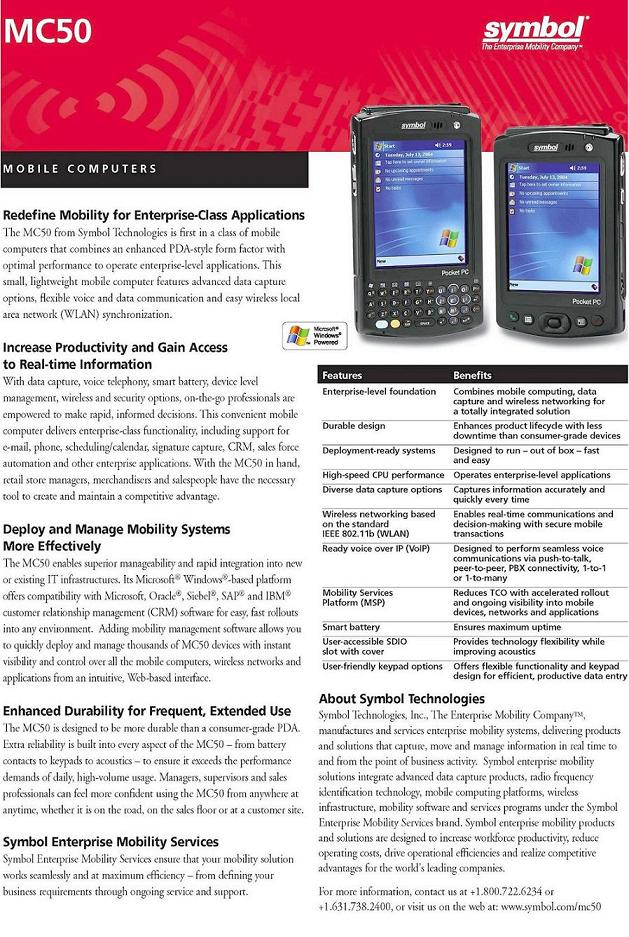

<산업용PDA 핸디터미널(1차원바코드,2차원바코드용) :Symbol MC50>
|
|
|
|
|
:: 산업용PDA Symbol MC50 Data Sheet ::
|

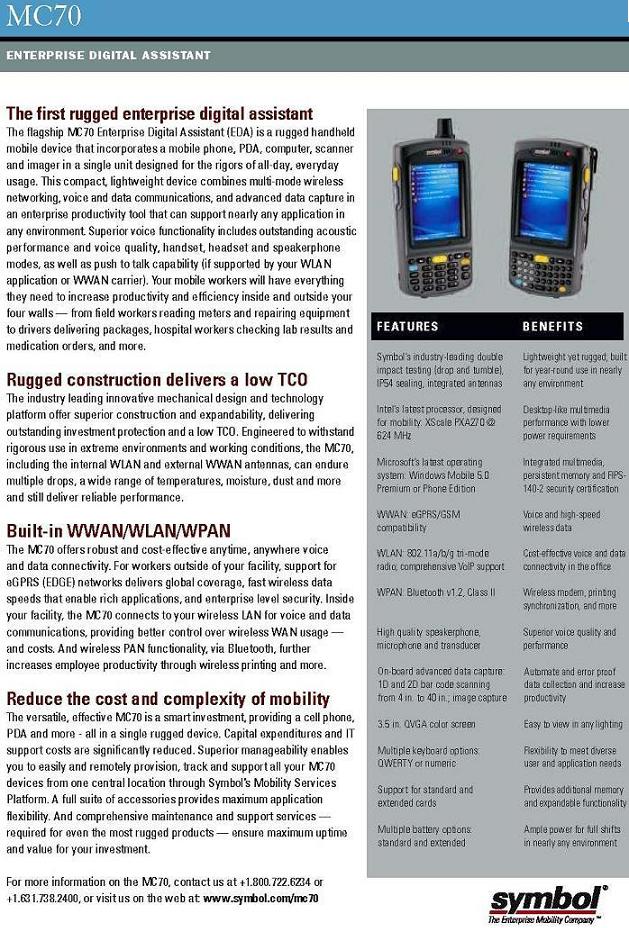

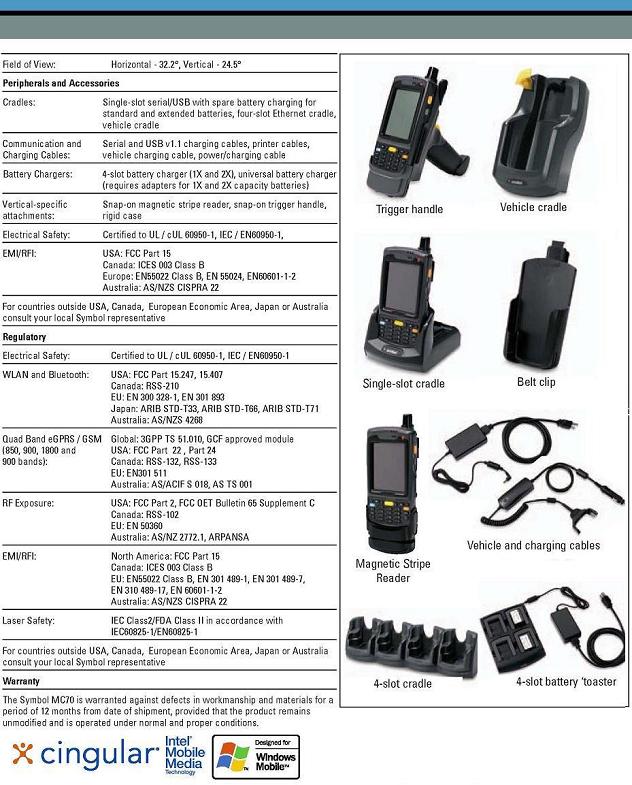

< 기업용디지털단말기:산업용PDA 핸디터미널(1차원바코드,2차원바코드용) :Symbol MC70 >
|
|
|
|
|
|
|

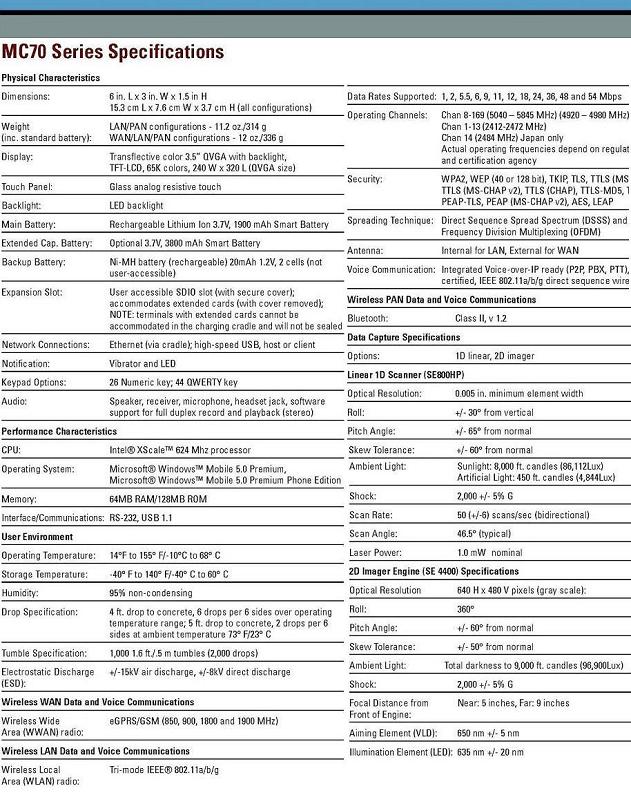

:: 산업용 PDA Symbol MC70 Data Sheet ::
|
|
|
|
|
|
|
|
|
|
|
::Symbol Motorola Mobile Coputing 산업용 엔터프라이즈 Coputers::
|
<Symbol(:심볼) : MC3000>
:: 산업용 핸디 터미널 : MC 3000 ::
|
|
|
Symbol’s MC3000 mobile computer is small, lightweight and rugged for applications
requiring high quality data capture and high-performance real-time computing.
By delivering superior data capture and exchange, the MC3000 helps speed response
throughout your supply chain from field sales to the shop floor.
- CPU : Intel Xscale 520Mhz
- 메모리 : ROM 64MB,RAM 64MB
- 802.11b 무선LAN 지원
- 용도 : 창고,유통,물류
- 특징 : -20~50 온도사용,1D,2D 선택기능

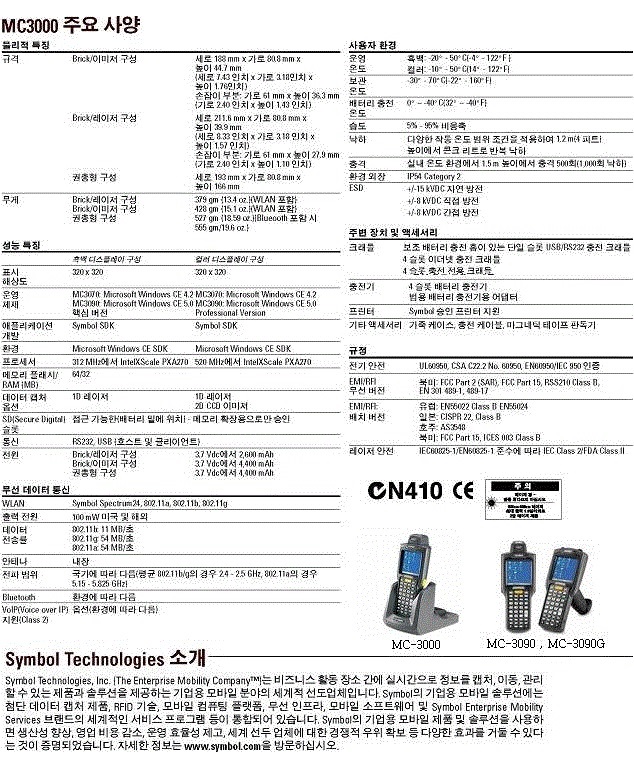

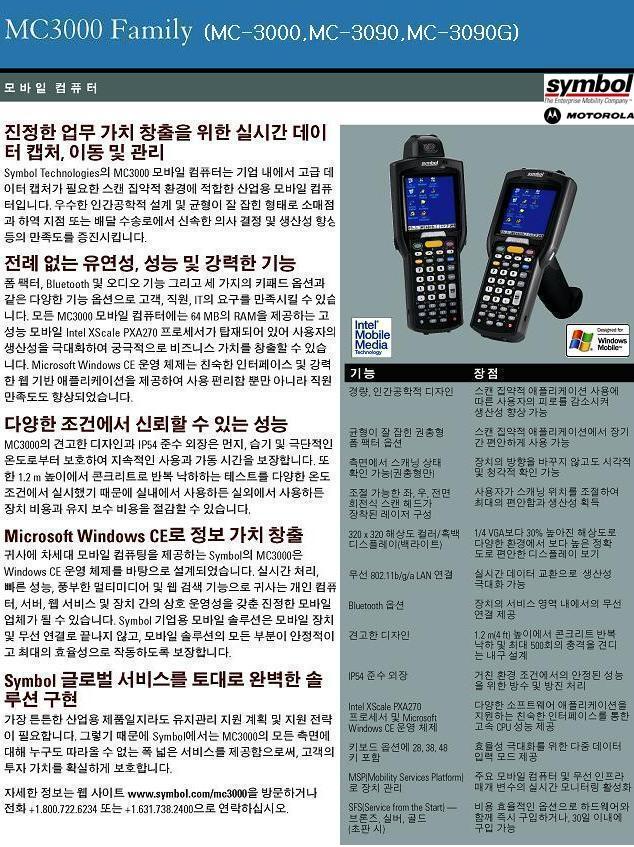

Symbol MC3000 Data Sheet
|
<Symbol(:심볼) : MC3090G Grip Version with Integrated Handle>
:: 산업용 핸디 터미널, Gun형 : MC 3090G ::
|
|
|
The MC3090 series builds upon the success of
the MC30000 series by delivering 802.11 b/g/a capability, improved WLAN Security options,
the latest CE.Net operating system and the introduction of a new form factor for this family
- the MC3090G, with integrated trigger handle.
- Optimized for ergonomics
- WLAN 802.11b/g/a
- 3” 320x320 resolution display
- CE.NET operating system
- 4 foot drop, 500 1/2meter tumbles
- Integrated 28, 38 and 48 key keypad options
- Standard 1D Laser or 2D imager
Symbol 산업용PDA MC3090-G Data Sheet
|
<Symbol(:심볼) : MC9060 (MC9000-G,K,S Series)>
:: 산업용 핸디 터미널 : MC 9060 (MC 9000) ::
|
|
|
Speed response with ready access to the most current enterprise information
Used in retail, manufacturing, logistics and industrial environments,
the rugged MC9000 mobile computers speed response by giving your
employees timely access to the information they need to do their jobs faster and better.
You gain overall operational efficiencies and reduce the costs and quality issues
associated with data input errors. Rugged designs and comfortable form factors enhance
both device and employee productivity and protect your investments in mobile technology.
Ease of deployment and management reduces your IT costs and increases return on investment.
- CPU : Intel Xscale 400Mhz
- 메모리 : ROM 64MB,RAM 64MB
- 802.11b 무선LAN 내장
- 용도 : 창고,유통,물류
- 특징 : -20~50 온도사용,1D,2D 선택기능
Symbol MC9060 G,K,S Data Sheet
|
<Symbol(:심볼) : MC9090 (MC9090-G,K,S Series)>
:: 산업용 핸디 터미널 : MC 9090 ::
|
|
|
The MC9090 rugged mobile computer empowers mobile workers to capture and access
critical business information in real time. The construction of the MC9090 is designed to withstand
rigorous use in extreme environments and a wide variety of working conditions, providing the flexibility to be used
on the manufacturing floor, in the warehouse or on the sales floor of a retail operation.
The MC9090 with Bluetooth supports wireless printing and use of wireless headsets.
Those with scan intensive applications such as price audits and inventory management
will enjoy the comfort of the pistol grip handle. The MC9090 gives users
a choice of Windows Mobile 5.0 or Windows CE 5.0--allowing you to select either
a familiar feature rich environment or a robust customizable application-specific environment.
The ability to capture images as well as scan bar codes enables enterprises
to deploy this single device in many business areas
- CPU : Intel Xscale 624Mhz
- OS : Windows Mobile 5.0 , Windows CE 5.0 선택
- 메모리 : ROM 64MB,RAM 128MB / ROM 64MB,RAM 64MB
- 802.11b 무선LAN 내장
- 용도 : 창고,유통,물류
- 특징 : -20~50 온도사용,1D,2D 선택기능
Symbol MC9090 G,K,S Data Sheet
|
<Symbol(:심볼) : Symbol MC9097 Industrial Mobile Computer >
:: 산업용 모바일 컴퓨터(전국망이 깔린 KT파워텔 TRS 통신)
:: MC-9097
|
|
|
The MC9097 provides the comprehensive wireless networking needed to maintain a costeffective voice and data
connection inside and outside your four walls. Integrated Sprint connectivity
provides a robust wireless wide area network (WWAN) connection.
심볼은 MC 9097이 제조 및 물류 등의 산업현장에서 일어날 수 있는 충격, 습기, 먼지 등의 악조건에서도
문제 없도록 설계했다고 강조했다. 심볼은 MC 9097이 제공하는 정보 공유 및 업무 자동화, 통신 기능 등의
이점을 토대로 제조 및 물류/택배분야를 집중 공략할 예정이다. 또한 더 나아가 A/S분야 및 유통분야에서도 활용 될 것으로 기대하고 있다.
- CPU : Intel® XScale™ Bulverde PXA270 processor at 624 MHz
- 메모리 :64MB RAM/ 128MB Flash
- O S : Microsoft® Windows® Mobile™ 5.0 Phone Edition
- Key : MC9097-K:28,43,53-key MC9097-S:28,38Alpha,38Numeric;53key
- Wireless LAN Data+ Voice,Wireless WAN Data+Voice,Wireless PAN Data+Voice
- 용도 : 택배,설비관리,창고,유통,물류,제조,건설현장
- 특징 : -20~50 온도사용,1D,2D 선택기능
* 심볼, 국내 최초로 TRS 기반의 모바일 컴퓨터인 MC 9097
* 무전 통신 및 이동전화, 바코드 스캔, 데이터 전송을 하나의 단말기로 해결해 고객의 비용
* 절감은 물론 신속한 업무 처리 제공
* 모바일 컴퓨터 MC 9097은 전국망이 깔린 KT파워텔의 TRS를 통해 개인, 그룹간 무전 통화가 가능
Symbol MC9097 Data Sheet
|
<Symbol(:심볼) : MC35 >
::기업용디지털단말기 :WAN,LAN,Bluetooth: MC-35 ::
|
|
|
The Symbol MC 35 is the first true smartphone from the world's barcode scanning leader.
The MC 35 features Windows Mobile 5.0 Phone Edition, Bluetooth, IrDA, 802.11bg LAN,
GSMGPRS WAN and GPS. The MC 35 also features a 2 MP.
- CPU : Intel XScale PXA270 416 MHz
- 메모리 : ROM 128MB,RAM 64MB
- 802.11b 무선LAN,WAN용,음성 및 DATA통신
- 용도 : 병원,창고,물류,택배,제조,호텔,유통
- 특징 : Camera 스캐너 내장 1D,2D 바코드해독
- OS : Microsoft Windows Mobile 5.0 Premium Phone Edition
Symbol MC-35 Data Sheet
|
