::RFID PDA AT870,AT880 AB700 RFID 바코드 무선 PDA 900MHz 13.56MHz Reader 메탈태그
     :: Android RFID Reader 안드로이드 PDA RFID 단말기 AT911,안드로이드 PDA 1D,2D 바코드 단말기 AT311
     ::AT870,AT880,AT880 RFID,AB-700,AT911UHF,AT311,AT288 RFID,1D 2D,MC9190-Z,U9-4000,U9-4200,M3

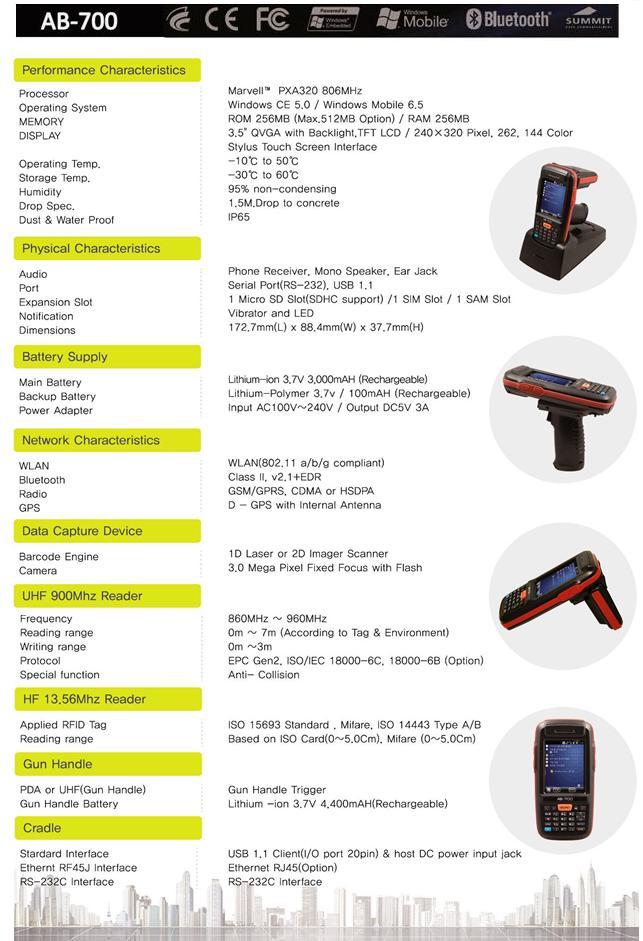

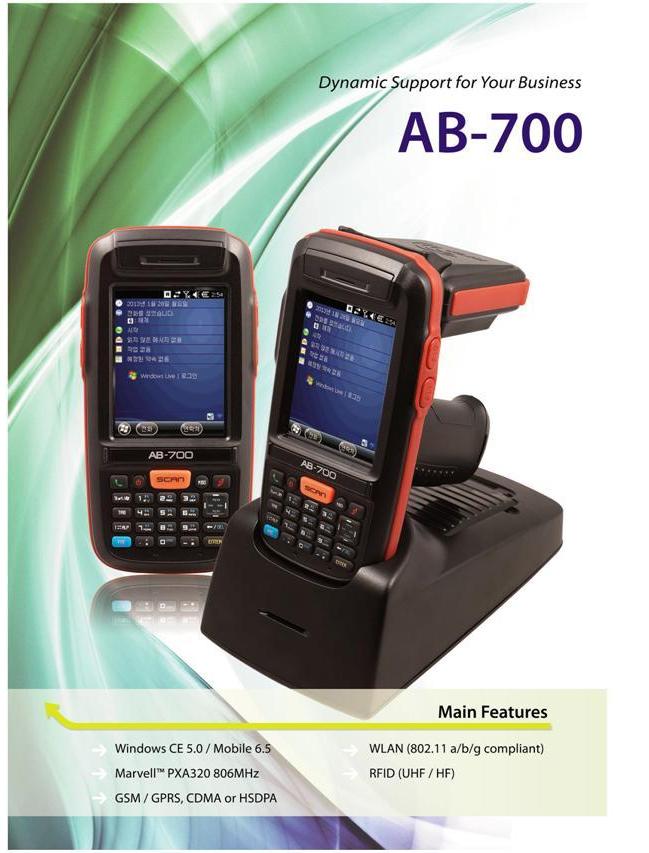

         ::::::::: AB-700 바코드(1D,2D),RFID(900MHz,13.56MHz)주요 특징 :::::::::
         * CPU :Intel Marvel PXA320 806 MHz processor
         * Operating System : Windows Mobile 6.5 ,Windows CE 5.0
         * 메모리 : 256MB RAM/256MB ROM , Expansion slot : 1 SD slot, 1 CF slot
         * 바코드스캐너 : 2D image /1D Laser 선택
         * Display : 3.5 QVGA with backlight, TFT-LCD 240 W x 320 L
         * 통신 : CDMA,GSM,WLAN IEEE 802.11ㅁ/b/g
         * Dimension(AB700본체) : 17.27cm L x 8.84cm W x 3.77cm

PDA RFID 터미널:AB-00,AB-700Gun,AB-700 RFID 900MHz,AB-700 RFID 13.56MHz

    산업용PDA RFID 터미널(바코드:1D,2D 선택가능):AB 700 바코드,RFID PDA Terminal




:: 산업용PDA AB700 DataSheet ::



PDA RFID 터미널:AT 880,AT 880Gun,AT 880 RFID 900MHz,AT 880 RFID 13.56MHz

    산업용PDA RFID 터미널(바코드:1D,2D 선택가능):AT 880 바코드,RFID PDA Terminal

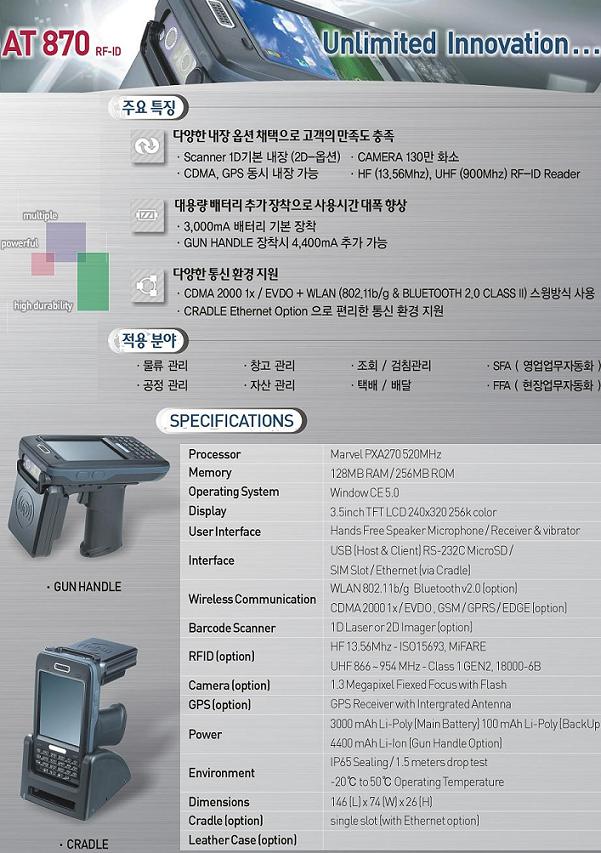

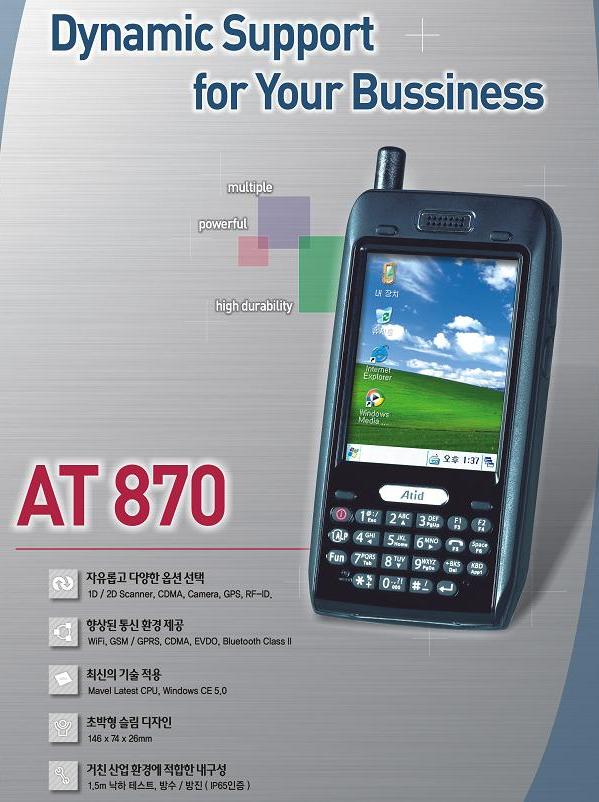

         ::::::::: AT-870 RFID 주요 특징 :::::::::
         * CPU :Intel Marvel PXA270 520 MHz processor PXA320 608MHz(Option)
         * Operating System : Microsoft Windows CE 5.0 ,Windows CE 6.0 (Option)
         * 메모리 : 128MB RAM/256MB ROM , Expansion slot : 1 SD slot, 1 CF slot
         * 바코드스캐너 : 2D image standard /1D Laser Option ,752 X 480 CMOS sensor
         * Display : 33.5 QVGA with backlight, TFT-LCD, 256K colors 240 W x 320 L (QVGA size)
         * Key : Numeric key, 2 scanner buttons, Power button
         * 인증 : IP54 Sealing, 1.5m Drop-Test , -20℃ to 50℃ Operating temperature
         * Main Battery : Lithium Polymer 3000mAh / 4400mAh (rechargeable)
         * 통신 : CDMA2000 1x (PHS,GSM/GPRS), WLAN IEEE 802.11b/g, Class II, v2.0, IrDA 무선통신
         * Dimension(AT870본체) : 14.6cm L x 7.4cm W x 2.6cm/ 270 ~ 330g (due to option)


PDA RFID 터미널:AT 870,AT 870Gun,AT 870 RFID 900MHz,AT 870 RFID 13.56MHz

    산업용PDA RFID 터미널(바코드:1D,2D 선택가능):AT 870 바코드,RFID PDA Terminal

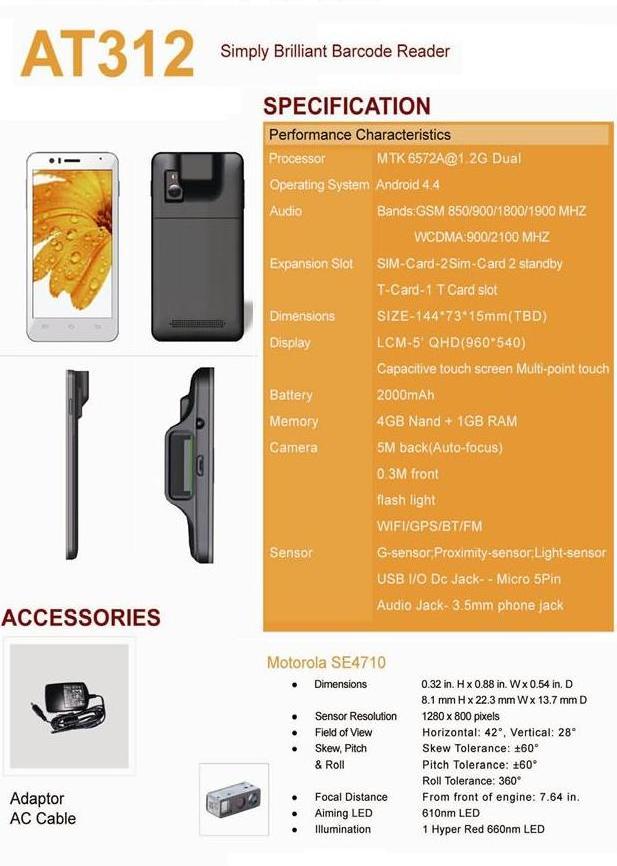

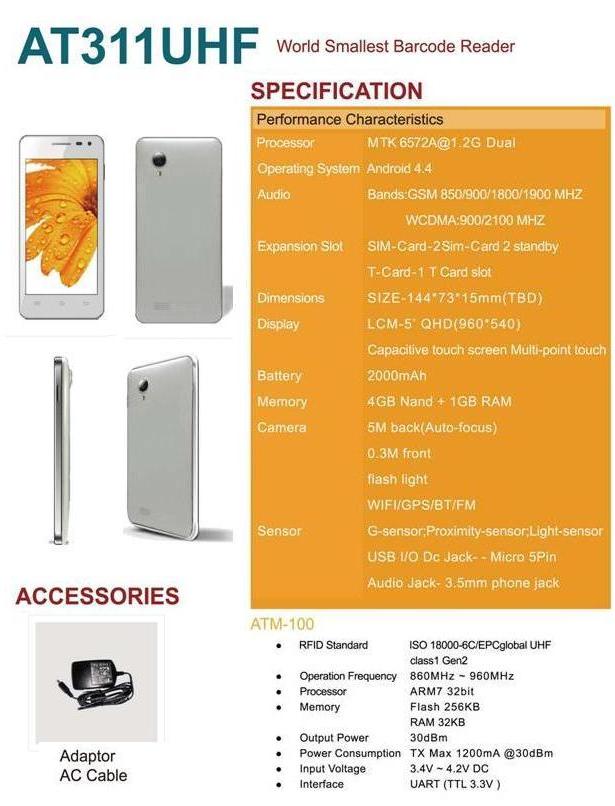

Android OS 탑재한 Smart형 PDA 단말기 - AT311 : UHF 전용, AT312 : Barcode 전용

    Smart형 PDA UHF RFID 단말기(AT311), Smart형 PDA 1D,2D 바코드 단말기(AT312)





:: AT311UHF-AT312Barcode DataSheet ::

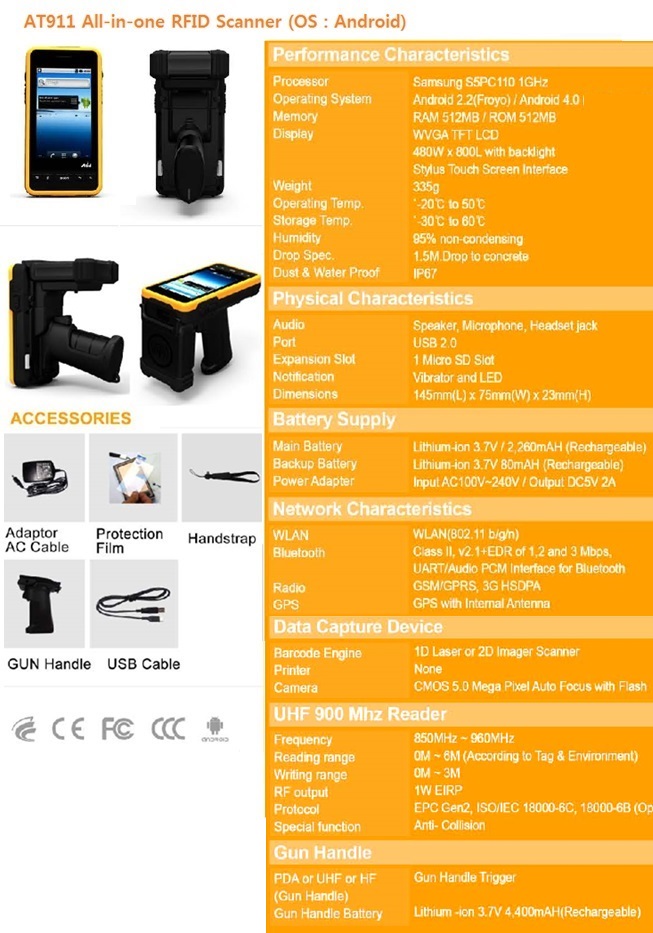

Android OS 탑재한 Smart형 PDA 단말기 - AT911 : Rugged Android mobile computer

    안드로이드 PDA UHF RFID 단말기(AT911), Android PDA 단말기(AT911)



:: AT-911 RFID DataSheet ::

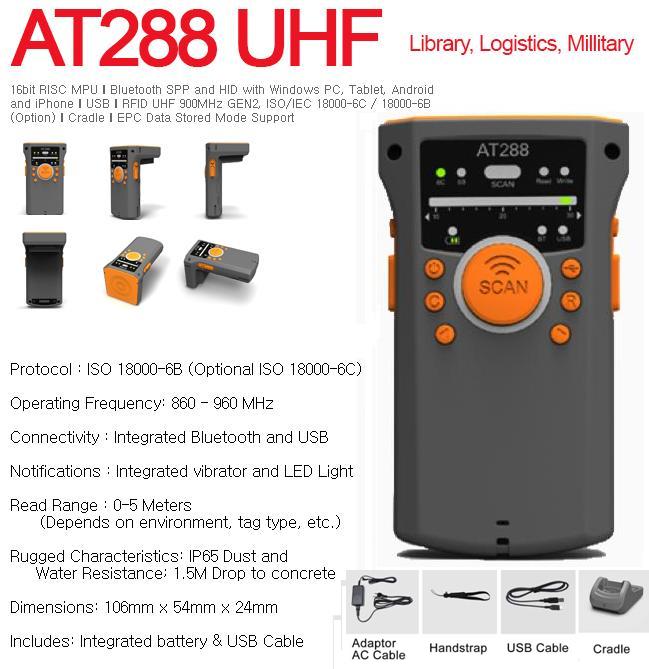

         ::::::::: AT-288 UHF(900MHz) RFID,1D,2D 주요 특징 :::::::::
         * Processor: 16bit RISC MPU
         * Memory : about 146Kbyte (30byte EPC data x 5,000 count store)
         * Display : LED Indicato
         * Weight : 180g (without battery)
         * Operating Temp.: -20℃ ~ 60℃
         * Dimensions (L x W x H) : 105.6 x 53.5 (Max 61) x 23.2 (Max 60.3)mm
         * Bluetooth : SPP and HID
         * Barcode Engine : 1D Laser or 2D Imager Scanner
         * Frequency : 860Mhz ~ 960Mhz
         * Reading range : 0M ~ 5M (According to Tag & Environment)


:: AT288 RFID DataSheet ::

Bluetooth RFID 모바일 터미널:AT 288 UHF (900MHz)

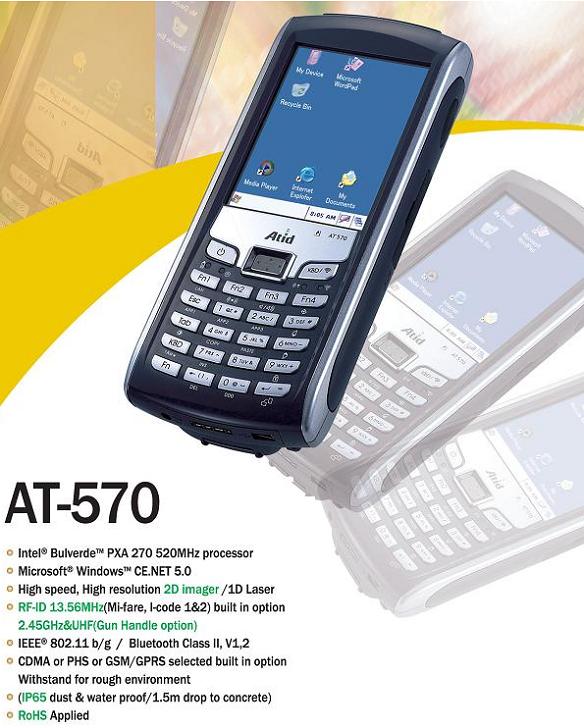

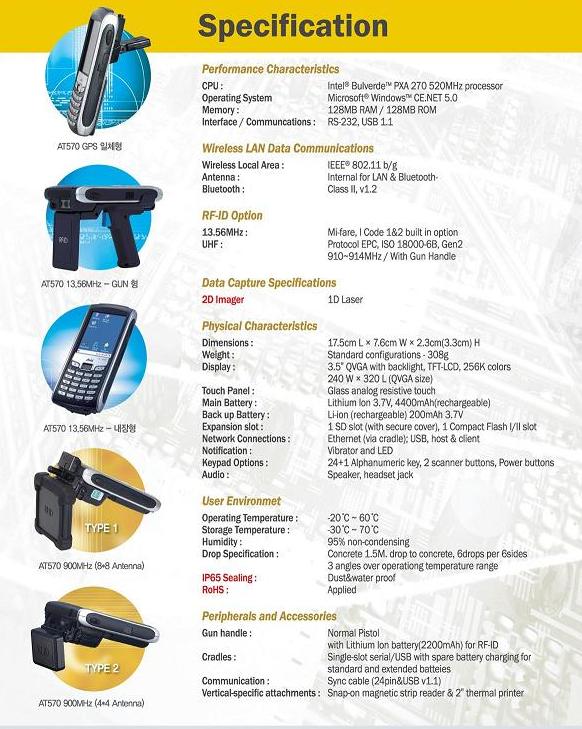

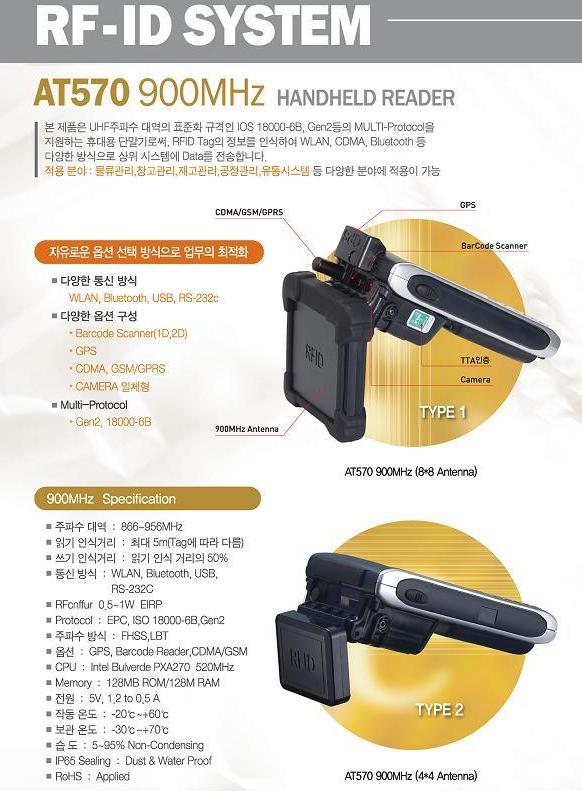

         ::::::::: AT-570 RFID 주요 특징 :::::::::
         * CPU : Intel Bulverde™ PXA 270 [520MHz / 624MHz] Processor 내장
         * Operating System : Microsoft Window CE 5.0
         * 메모리 : 64MB RAM, 128MB ROM (256MB 확장 가능)
         * Expansion slot : 1 SD slot, 1 CF slot
         * 바코드스캐너 : CCD 2D Scanner(기본), LASER 1D Scanner (Option), Long range가능
         * Display : 3.5" QVGA with backlight, TFT-LCD, 256K Color(240W x 320L)
         * Key : 24Keys +1 navigation Key 장착, Keypad Backlight 기능
         * 인증 : IP65(방수,방진), 1.5m Drop-Test , -10~50℃ Operating temperature
         * Main Battery : 4400mAh Li-ion을 기본 장착 (Backup Battery : 200mAh Li-Poly)
         * 통신 : CDMA2000 1x (PHS,GSM/GPRS), WLAN IEEE 802.11b/g, Bluetooth v1.2, IrDA 무선통신
         * Expansion slot : 1 SD slot, 1 CF slot
         * Dimension(AT570본체) : 170[H] x 74[W] x 28[D] mm / 중량(AT570본체) : 380g
         * Interface / Communications : RS-232 , USB 1.1 , IrDA1.1
         * RFID (13.56Mhz / 900Mhz UHF / 2.45GHz RFID) Reader 장착 가능


PDA RFID 터미널:AT570,AT570Gun,AT570 RFID 900MHz,AT570 RFID 13.56MHz

    산업용PDA 핸디터미널(2차원바코드,1차원바코드) : AT570 (AT-570)



    산업용PDA-RFID 90MHz 터미널 (바코드:선택가능) : AT-570 RFID 900Mhz 기본,Gun

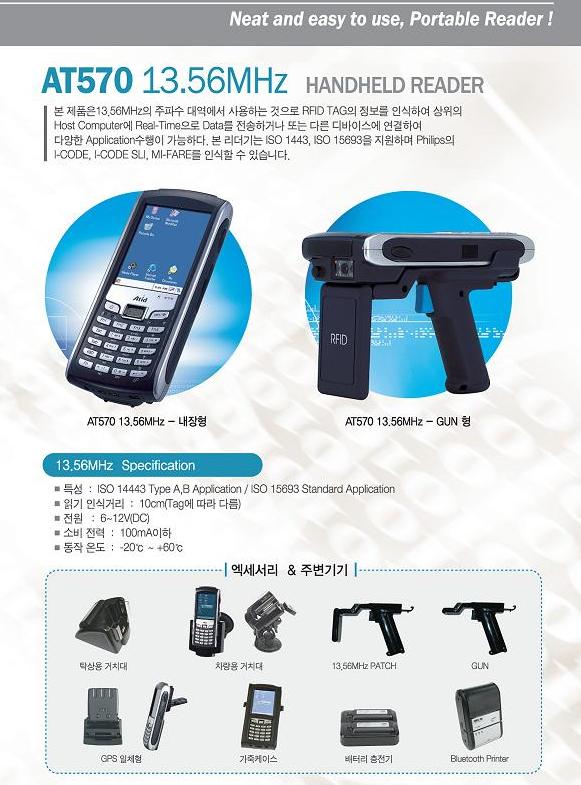

    산업용PDA-RFID 13.56MHz터미널(바코드:선택):AT-570 RFID 13.56Mhz 기본,Gun



    산업용PDA-RFID 터미널 90MHz,13.56MHz(바코드:선택가능):AT-570 RFID



:: 산업용PDA AT-570 RFID DataSheet ::
:: AT-570_Quick Reference Guide 메뉴얼 ::



< M3 RFID Gun UHD : 산업용 PDA (RFID GUN,M3 ORANGE RFID,M3 SKY RFID)>


M3 모바일 산업용 PDA M3 RFID Gun Data Sheet



Zebra MC3190-Z RFID.1D,2D : 산업용 PDA 터미널 (RFID,1D,2D 바코드)


Zebra MC3190-G RFID Data Sheet



Zebra MC9190-Z RFID.1D,2D : 산업용 PDA 터미널 (RFID,1D,2D 바코드)


Zebra MC9190-G RFID Data Sheet



U9-4200 Cpmpact RFID Reader with Bluetooth RFID.1D,2D 바코드


U9-4200 Cpmpact RFID Reader with Bluetooth Data Sheet



U9-4000 Poartable RFID Reader


U9-4000 Cpmpact RFID Reader Data Sheet
