Datalogic Barcode Fixed Scanner (::Datalogic Fixed 산업용 1D,2D고정형 바코드스캐너
데이타로직 고정형 바코드스캐너) 1D 2D 자동 바코드스캐너 제품은 소형에서 대형까지 다양한
제품군과 기능으로 제조,물류,Sorting,자동화 산업현장에 SOLUTION을 구축에 적합니다

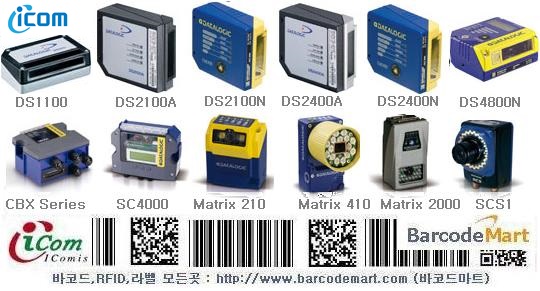

산업용스캐너,고정형스캐너 Datalogic Industrial Bar Code Scanner TC1100 DS1100 DS2100 DS2100A DS2200 DS2400A
DS4600A DS4600A ACR DS6300/6400/6500 DS8100 DS8100A DX8200 DX8200A Matrix 1000 Matrix 2000
|
< Datalogic Fixed Scanners : TC1100 >
:: 산업용 바코드 고정형 스캐너 ::
Puzzle Solve 기능탑재 CCD타입, 소형 및 초경량의 컴팩트타입
산업용 바코드스캐너
Compact CCD Reader, powerful reading capabilities, enhanced code reconstruction
with the Puzzle Solver™ technology, PDF417 bar code decoding, flexible interface
“All in One” architecture, Windows-based programming tool, lightweight and compact dimensions
|
|
Datalogic TC1100 Data Sheet
|
< Datalogic Fixed Scanners : DS1100 >
:: 산업용 바코드 고정형 스캐너 ::
소형Laser스캐너,스캔속도 최대 500scans,S/W통한 Motor의 on & off,
100g 미만의 초경량 산업용 바코드스캐너
Ultra compact cost effective laser scanner, very compact dimensions, motor on/off software commands,
wide reading width at a short reading distance, lightweight 100 g, built-in RISC decoder,
scanning speed of 500 scans/sec, dual high speed serial interface, IP65 rugged industrial housing
|
|
Datalogic DS1100 Data Sheet
|
< Datalogic Fixed Scanners : DS2100A >
:: 산업용 바코드 고정형 스캐너 ::
소형고성능산업용레이져 스캐너,스캔속도 최대 1000scans,
ACB(Advanced Code Builder)고성능 스캔기능,S/W통한 Motor on & off기능
사용자 셋팅 전용 WINHOST 프로그램, IP65 Industrial Housing
DS2100A has been developed focusing on the realistic requirements of its target markets.
The excellent reading capabilities provided by the DS2100A are enhanced by the adoption
of ACB™ Advanced Code Builder, the Datalogic proprietary software able to decode partially
damaged or normally unreadable codes due to a high tilt angle.
|
|
Datalogic DS2100A Data Sheet
|
< Datalogic Fixed Scanners : DS2200 >
:: 산업용 바코드 고정형 스캐너 ::
Ultra소형산업용레이져스캐너,초소형 사이즈,150g 초경량, 최대스캔속도 500scans,
분해능 0.076mm(3mils),전용 WINHOST 프로그램,IP65 Industrial Housing
Ultra compact laser scanner, built-in decoder, 500 scans/sec, reading distance from 50 to 220 mm.
|
|
Datalogic DS2200 Data Sheet
|
< Datalogic Fixed Scanners : DS2400A >
:: 산업용 바코드 고정형 스캐너 ::
소형고성능산업용레이져스캐너,최대 스캔속도 1000scans, ACB(Advanced Code Builder)스캔기능,
전용 WINHOST 프로그램지원,IP65 Industrial Housing
The DS2400A combines long distance reading, high scanning speed and very compact dimensions
with the new ACB™ Advance Code Builder, the Datalogic proprietary software able to decode partially
damaged or normally unreadable bar codes to due to high tilt angles.
|
|
Datalogic DS2400A Data Sheet
|
< Datalogic Fixed Scanners : DS4600A Standard>
:: 산업용 바코드 고정형 스캐너 ::
고성능산업용레이져스캐너, 명암이 낮은 인쇄의 바코드판독우수,스캔거리 1000mm,
Display 및 Keypad기능, Oscillating Mirror 옵션, 고온 및 저온환경 사용,일체형 히터 및 쿨러기능,
Motor on & off기능,사용자 셋팅 전용 WINHOST 프로그램, IP65 Industrial Housing
High performance compact laser scanner, display and keypad, autolearning function,
good reading performance on low contrast barcodes, internal heater available for low temperature environment, reading distance up to 1,000 mm.
|
|
Datalogic DS4600A Standard Data Sheet
|
< Datalogic Fixed Scanners : DS4600A ACR>
:: 산업용 바코드 고정형 스캐너 ::
고성능산업용레이져스캐너, ACR(Advanced Code Reconstruction)기능,
명암이 낮은 인쇄의 바코드 판독우수,스캔거리 1000mm,Oscillating Mirror 옵션,
Motor on & off기능,사용자 셋팅 전용 WINHOST 프로그램, IP65 Industrial Housing
High performance compact laser scanner, ACR decoder, good reading performance
on low contrast barcodes, reading distance up to 1,000 mm.
|
|
Datalogic DS4600A ACR Data Sheet
|

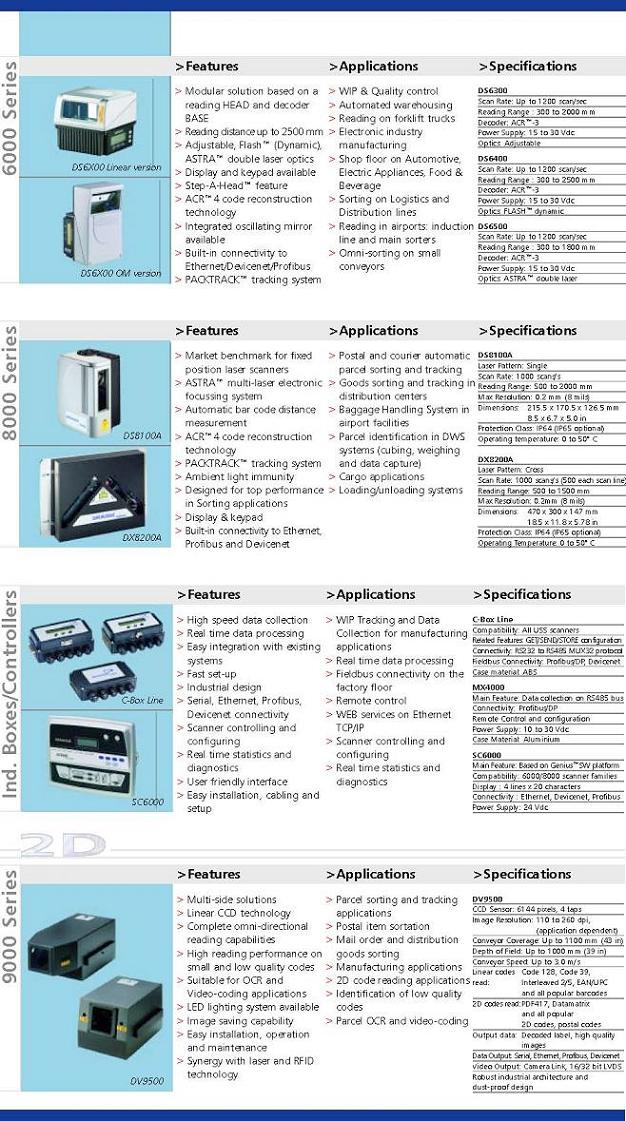

< Datalogic Fixed Scanners : DS6300>
:: 산업용 바코드 고정형 스캐너 ::
고성능산업용레이져스캐너, 스캔거리 2000mm,Ethernet,Devicenet,Profibus일체형
Display,Keypad기능,Oscillating Mirror옵션
High performance laser scanner, new Step-a-Head™ feature, new "2-step" optic, reading range from 250 to 2,000 mm,
advanced decoder with code reconstruction capability (ACR4), good reading performance on
very low contrast bar codes, display and keyboard, new GENIUS™ SW configurator.
|
|
Datalogic DS6300 Data Sheet
|
< Datalogic Fixed Scanners : DS6400>
:: 산업용 바코드 고정형 스캐너 ::
고성능산업용레이져스캐너,오토포커스기능(자동스캔거리)
ACR4(Advanced Code Reconstruction)스캔 ,스캔거리 2500mm
Ethernet,Devicenet, Profibus일체형,PackTrack기능,Display,Keypad기능
Oscillating Mirror옵션
High performance laser scanner, new Step-a-Head™ feature, reading range from 300 to 2,500 mm, new FLASH™
dynamic focus, advanced decoder with code reconstruction capability (ACR4),
display and keyboard, new GENIUS™ SW configurator, PackTrack™ function.
|
|
Datalogic DS6400 Data Sheet
|
< Datalogic Fixed Scanners : DS6500>
:: 산업용 바코드 고정형 스캐너 ::
고성능산업용레이져스캐너,오토포커스기능(자동스캔거리)
ACR4(Advanced Code Reconstruction)스캔 ,스캔거리 1800mm
Ethernet,Devicenet, Profibus일체형,PackTrack기능,Display,Keypad기능
Oscillating Mirror옵션
High performance laser scanner, new Step-a-Head™ feature, reading range from 400 to 1,800 mm,
advanced decoder with code reconstruction capability (ACR4),
PackTrack™ function, display and keyboard, new GENIUS™ SW configurator, ASTRA™ 2 diode optic platform
|
|
Datalogic DS6500 Data Sheet
|
< Datalogic Fixed Scanners : DS8100A>
:: 산업용 바코드 고정형 스캐너 ::
최고성능산업용레이져스캐너,ACR4(Advanced Code Reconstruction)고성능스캔
Astra기술이용 스캔 포커스기능,Ethernet,TCP/IP protocol 일체형
PackTrack 기능, Display 및 Keypad기능
The new DS8100A is a top performing fixed position laser bar code reader, purposely
designed to satisfy the needs of Sorting applications for the Transportation & Logistics market.
|
|
|
Datalogic DS8100A Data Sheet
|
Datalogic DS8100A Reference Manual(규격,사양,구성안,설치방법)
|
< Datalogic Fixed Scanners : DX8200A>
:: 산업용 바코드 고정형 스캐너 ::
최고성능산업용 Omni Directional 레이져 스캐너, ACR4(Advanced Code Reconstruction)고성능스캔
Astra기술이용스캔 포커스기능, Ethernet,TCP/IP protocol 일체형,PackTrack 기능
Display 및 Keypad기능,확장 파워 85-264VAC
The new DX8200A is a top performance omni-directional laser bar code scanner,
purposely designed to satisfy the needs of sorting applications for the Transportation & Logistics market
|
|
Datalogic DX8200A Data Sheet
|
< Datalogic 통신박스 : C-Box Line>
Datalogic 전용통신박스, DS1000,2000,4000,6000 & Matrix전용,Display
Industrial connection box, fast installation and maintenance, possibility to GET/STORE and
SEND the configuration of the connected products, connectivity to Profibus DP and DeviceNet and WinHost™ configuration SW.
|
|
Datalogic C-box Data Sheet
|
< Datalogic 콘트롤로 : SC6000 >
산업용콘트롤러, 멀티스테이션,견고한 하드케이스,Display&Keypad
The SC6000 is the ultimate Datalogic industrial controller specifically designed for
omni-directional multi-side reading tunnels. It offers all the necessary tools to make the phases
of System Installation, Setup, Testing and Maintenance of an omni-directional reading tunnel easy and quick.
|
|
Datalogic SC6000 Data Sheet
|
< Datalogic Multiplexer : MX4000>
Multiplexer, 최대 32대 스테이션 통신, RS485지원,견고한외장케이스
Data collection device, up to 32 reading stations connection, 2 serial interfaces,
Profibus-DP and Interbus-S interfaces, remote scanner control and set-up, network monitoring, display and keypad
|
|
Datalogic MX4000 Data Sheet
|
< Datalogic 2D Fixed Scanners : Datalogic Matrix 1000>
:: 2차원바코드(2D) 고정형 스캐너, 2D Fixed Reader ::
Matrix-1000 has been improved to offer an Autolearning function for quick installation and set-up
without a PC, high dynamic reading performance, up to 30 frames/s (1800 frames/min),
Ethernet configuration/data collection and DPM (Direct Part Marking) decoding capabilities
|
|
Datalogic Matrix 1000 2D Reader Data Sheet
|
< Datalogic 2D Fixed Scanners : Datalogic Matrix 2000>
:: 2차원바코드(2D) 고정형 스캐너 ::
Matrix-2000 has been improved to offer an Autolearning function for quick installation and set-up
without a PC, high dynamic reading performance, up to 60 frames/s (3600 frames/min),
Ethernet configuration/data collection and DPM (Direct Part Marking) decoding capabilities
|
|
Datalogic Matrix 2000 2D Reader Data Sheet
|
< Datalogic 2D Fixed Scanners : Datalogic Matrix 2005 MP>
:: 2차원바코드(2D) 고정형 스캐너 ::
Matrix-2000 offers a SXGA 1,3 MPixel sensor, wide field of view (FoV) and reads up to 100 codes in a single frame.
The Matrix-2XX5MP has been improved to enable 96 vial rack reading in a single image acquisition,
CD/DVD identification, WIP control / product traceability, or document and mail processing
|
|
|
Datalogic Matrix 2005 MP 2D Reader Data Sheet
|
Matrix 2000 , Matrix 2xx5 MP Quick Reference Guide 제품규격,구성,설치방법 DataSheet
|
Datalogic Barcode Scanners Matrix2000 DS8100 DS6300 DS4600A DS2400 DS2200 DS2100 DS1100
산업용 Fixed 바코드 스캐너 : TC1100 DS1100 DS2100A DS2200 DS2400A DS4600A ST DS4600A ACR
DS6300 DS6400 DS6500 DX6400 DX6500 DS8100A DS8200A DX8200A DV9500
바코드스캐너 콘트롤로,통신박스 : C-BOX SC6000 MX4000
핸드바코드스캐너 : D100 D120 D130 D130G D131 D101 D53
바코드 무선스캐너 : M100 M101/D BT432
산업용 Fixed 2차원스캐너 : D432 Matrix1000 Matrix2000 Matrix2xx5 MP
Datalogic 산업용 자동 바코드 스캐너의 모델 및 악세서리
CCD 타입의 산업용고정식스캐너
TC1100-0100 CCD Fixed Scan Engine Linear
TC1100-0200 CCD Fixed Scan Engine PDF
TC1100-1100 CCD Fixed Scaner Linear
TC1100-1200 CCD Fixed Scaner PDF
악세서리 :
GFC-TC1100 90 degree reflecting mirror
2차원바코드 전용 산업용바코드스캐너
MATRIX-1021 High Resolution, CCD Multi-Code Reader
MATRIX-1031 Standard Resolution, CCD Multi-Code Reader
MATRIX-1041 Low Resolution, CCD Multi-Code Reader
MATRIX-1051 Medium Range, CCD Multi-Code Reader
악세서리 :
GFC-MATRIX2000 90 degree reflecting mirror
PG6002 Single Scanner Power Supplt Unit
C-BOX 100 Passive Connection Box for D-sub25 Connector Scanner
CAB-6001 Cable for NEW6000 M/S-C-BOX 100 1M
CAB-6002 Cable for NEW6000 M/S-C-BOX 100 2M
CAB-6005 Cable for NEW6000 M/S-C-BOX 100 5M
2차원바코드전용 산업용바코드스캐너
MATRIX-2011 Ultra-High Resolution, CCD Multi-Code Reader
MATRIX-2021 High Resolution, CCD Multi-Code Reader
MATRIX-2031 Standard Resolution, CCD Multi-Code Reader
MATRIX-2041 Low Resolution, CCD Multi-Code Reader
MATRIX-2051 Medium Range, CCD Multi-Code Reader
MATRIX-2061 Long Range, CCD Multi-Code Reader
MATRIX-2025 High Resolution, CCD Multi-Code Reader,Mega pixcel
MATRIX-2045 Low Resolution, CCD Multi-Code Reader,Mega Pixcel
MATRIX-2055 Medium Range, CCD Multi-Code Reader,Megapixcel
MATRIX-2111 Ultra-High Resolution, CCD Multi-Code Reader,Ethernet interface
MATRIX-2121 High Resolution, CCD Multi-Code Reader,Ethernet interface
MATRIX-2131 Standard Resolution, CCD Multi-Code Reader,Ethernet interface
MATRIX-2141 Low Resolution, CCD Multi-Code Reader,Ethernet interface
MATRIX-2151 Medium Range, CCD Multi-Code Reader,Ethernet interface
MATRIX-2161 Long Range, CCD Multi-Code Reader,Ethernet interface
MATRIX-2121-R High Resolution, CCD Multi-Code Reader,Ethernet interface,90 degree window
MATRIX-2141-R Low Resolution, CCD Multi-Code Reader,Ethernet interface,90 degree window
MATRIX-2145 Low Resolution, CCD Multi-Code Reader,Ethernet interface,Mega Pixel
MATRIX-2155 Medium Range, CCD Multi-Code Reader,Ethernet interface,Mega Pixel
MATRIX-2125 High Resolution, CCD Multi-Code Reader,Ethernet interface,Mega Pixel
악세서리 :
LT-100 Cone Lighting System
LT-200 Spot Lighting System
GFC-MATRIX2000 90 degree reflecting mirror
PG6002 Single Scanner Power Supplt Unit
C-BOX 100 Passive Connection Box for D-sub25 Connector Scanner
CAB-6001 Cable for NEW6000 M/S-C-BOX 100 1M
CAB-6002 Cable for NEW6000 M/S-C-BOX 100 2M
CAB-6005 Cable for NEW6000 M/S-C-BOX 100 5M
DS1100 산업용 레이져바코드스캐너
DS1100-1100 Standard Res,Single and Nomal Scan,RS232+RS485,DC5V
DS1100-1101 Standard Res,Single and 90degree Scan,RS232+RS485,DC5V
DS1100-1110 Standard Res,Raster 1 and Nomal Scan,RS232+RS485,DC5V
DS1100-1111 Standard Res,Single and 90degree Scan,RS232+RS485,DC5V
DS1100-2100 High Res,Single and Nomal Scan,RS232+RS485,DC5V
DS1100-2101 High Res,Single and 90degree Scan,RS232+RS485,DC5V
DS1100-2110 High Res,Raster 1 and Nomal Scan,RS232+RS485,DC5V
DS1100-2111 High Res,Single and 90degree Scan,RS232+RS485,DC5V
DS1100-1100 SH2347 Standard Res,Single and Nomal Scan,RS232+RS485,DC10-30V
DS1100-1101 SH2347 Standard Res,Single and 90degree Scan,RS232+RS485,DC10-30V
DS1100-1110 SH2347 Standard Res,Raster 1 and Nomal Scan,RS232+RS485,DC10-30V
DS1100-1111 SH2347 Standard Res,Single and 90degree Scan,RS232+RS485,DC10-30V
DS1100-2100 SH2347 High Res,Single and Nomal Scan,RS232+RS485,DC10-30V
DS1100-2101 SH2347 High Res,Single and 90degree Scan,RS232+RS485,DC10-30V
DS1100-2110 SH2347 High Res,Raster 1 and Nomal Scan,RS232+RS485,DC10-30V
DS1100-2111 SH2347 High Res,Single and 90degree Scan,RS232+RS485,DC10-30V
악세서리 :
C-BOX 100 Passive Connection Box for D-sub25 Connector Scanner
DC5-2200 DC CONVERTER 4-30 VDC TO 5 V
DS2200 산업용레이져바코드스캐너
DS2200-1100 Standard Res,Single Scan,RS232+RS485,DC5V
DS2200-1110 Standard Res,Raster 1 Scan,RS232+RS485,DC5V
DS2200-2100 High Res,Single Scan,RS232+RS485,DC5V
DS2200-2110 High Res,Raster 1 Scan,RS232+RS485,DC5V
DS2200-1100 SH2348 Standard Res,Single Scan,RS232+RS485,DC10-30V
DS2200-1110 SH2348 Standard Res,Raster 1 Scan,RS232+RS485,DC10-30V
DS2200-2100 SH2348 High Res,Single Scan,RS232+RS485,DC10-30V
DS2200-2110 SH2348 High Res,Raster 1 Scan,RS232+RS485,DC10-30V
악세서리 :
GFC-2200 SH1940 90 degree reflecting mirror
C-BOX 100 Passive Connection Box for D-sub25 Connector Scanner
DC5-2200 DC CONVERTER 4-30 VDC TO 5 V
DS2100A 산업용레이져바코드스캐너
DS2100A-1200 STD resolution,Single Scan,D-sub25S Connector
DS2100A-2200 High resolution,Raster Scan No.1,D-sub25S Connector
DS2100A-1210 STD resolution,Raster Scan No.1,D-sub25S Connector
DS2100A-2210 High resolution,Raster Scan No.1,D-sub25S Connector
DS2100A-1204 STD resolution,Single Scan,D-sub25S Connector, TR
DS2100A-1214 High resolution,Raster Scan No.1,D-sub25S Connector, TR
DS2100A-2204 STD resolution,Raster Scan No.1,D-sub25S Connector, TR
DS2100A-2214 High resolution,Raster Scan No.1,D-sub25S Connector, TR
악세서리 :
GFC-2100 90 degree reflecting mirror
GFC-200 85 degree reflecting mirror contact-reading
OM2000 Oscillating mirror for DS2100A/DS2400A
C-BOX 100 Passive Connection Box for D-sub25 Connector Scanner
C-BOX 200 Active Connection Box for D-sub25 Connector Scanner
DS2400A산업용레이져바코드스캐너
DS2400A-0200 SHORT Range,Single Scan,D-sub25S Connector
DS2400A-0210 SHORT Range,Raster Scan No.1,D-sub25S Connector
DS2400A-1200 MEDIUM Range,Single Scan,D-sub25S Connector
DS2400A-1210 MEDIUM RangeRaster Scan No.1,D-sub25S Connector
DS2400A-2200 LONG Range,Single Scan,D-sub25S Connector
DS2400A-2210 LONG Range,Raster Scan No.1,D-sub25S Connector
악세서리 :
GFC-2100 90 degree reflecting mirror
GFC-200 85 degree reflecting mirror contact-reading
OM2000
DS1100 시리즈 최소형 산업용 레이져 스캐너
스캔속도 최대 500scans/sec, 소프트웨어를 통한 Motor의 on & off기능
복수의 초고속 통신포트 RS232 & RS485,100g 미만의 초경량
- 사용용도 : 화학 및 혈액관리관련 ,의약품의 코드관리 ,자동 텔러머신(현금인출기) ,비디오 및 CD렌탈머신
공정 및 품질관리 ,Assembly 라인
DS1100-1100 Standard Res,Single and Nomal Scan,RS232+RS485,DC5V
DS1100-1101 Standard Res,Single and 90degree Scan,RS232+RS485,DC5V
DS1100-1110 Standard Res,Raster 1 and Nomal Scan,RS232+RS485,DC5V
DS1100-1111 Standard Res,Single and 90degree Scan,RS232+RS485,DC5V
DS1100-2100 High Res,Single and Nomal Scan,RS232+RS485,DC5V
DS1100-2101 High Res,Single and 90degree Scan,RS232+RS485,DC5V
DS1100-2110 High Res,Raster 1 and Nomal Scan,RS232+RS485,DC5V
DS1100-2111 High Res,Single and 90degree Scan,RS232+RS485,DC5V
DS1100-1100 SH2347 Standard Res,Single and Nomal Scan,RS232+RS485,DC10-30V
DS1100-1101 SH2347 Standard Res,Single and 90degree Scan,RS232+RS485,DC10-30V
DS1100-1110 SH2347 Standard Res,Raster 1 and Nomal Scan,RS232+RS485,DC10-30V
DS1100-1111 SH2347 Standard Res,Single and 90degree Scan,RS232+RS485,DC10-30V
DS1100-2100 SH2347 High Res,Single and Nomal Scan,RS232+RS485,DC10-30V
DS1100-2101 SH2347 High Res,Single and 90degree Scan,RS232+RS485,DC10-30V
DS1100-2110 SH2347 High Res,Raster 1 and Nomal Scan,RS232+RS485,DC10-30V
DS1100-2111 SH2347 High Res,Single and 90degree Scan,RS232+RS485,DC10-30V
DS2100A 시리즈 : 소형 고성능 산업용 레이져 스캐너, 스캔속도 최대 1000scans/sec
ACB(Advanced Code Builder)를 통한 고성능 스캔기능. 소프트웨어를 통한 Motor의 on & off기능
사용자가 선택이 가능한 초고속 통신포트 RS232 & RS485 +RS232지원
사용자가 쉽게 셋팅 할 수 있는 전용 WINHOST 프로그램지원, IP65 Industrial Housing
사용용도 :소형 컨베이어의 분류(Sorting)시스템 ,자동 선별시스템 ,자동 포장시스템
생산공정
DS2100A-1200 STD resolution,Single Scan,D-sub25S Connector
DS2100A-2200 High resolution,Raster Scan No.1,D-sub25S Connector
DS2100A-1210 STD resolution,Raster Scan No.1,D-sub25S Connector
DS2100A-2210 High resolution,Raster Scan No.1,D-sub25S Connector
DS2100A-1204 STD resolution,Single Scan,D-sub25S Connector, TR
DS2100A-1214 High resolution,Raster Scan No.1,D-sub25S Connector, TR
DS2100A-2204 STD resolution,Raster Scan No.1,D-sub25S Connector, TR
DS2100A-2214 High resolution,Raster Scan No.1,D-sub25S Connector, TR
DS2200 :Ultra 소형 산업용 레이져 스캐너, 초소형 사이즈 50mm*40mm*28mm
150g 미만의 초경량, 최대 스캔속도 500scans/sec, 초고 해상도의 분해능 0.076mm(3mils), 복수의 초고속 통신포트
사용자가 쉽게 셋팅 할 수 있는 전용 WINHOST 프로그램지원, IP65 Industrial Housing
사용용도 :화학 및 의료 관련머신 ,자동 포장시스템 .가격검증 머신
DS2200-1100 Standard Res,Single Scan,RS232+RS485,DC5V
DS2200-1110 Standard Res,Raster 1 Scan,RS232+RS485,DC5V
DS2200-2100 High Res,Single Scan,RS232+RS485,DC5V
DS2200-2110 High Res,Raster 1 Scan,RS232+RS485,DC5V
DS2200-1100 SH2348 Standard Res,Single Scan,RS232+RS485,DC10-30V
DS2200-1110 SH2348 Standard Res,Raster 1 Scan,RS232+RS485,DC10-30V
DS2200-2100 SH2348 High Res,Single Scan,RS232+RS485,DC10-30V
DS2200-2110 SH2348 High Res,Raster 1 Scan,RS232+RS485,DC10-30V
DS2400A :소형 고성능 산업용 레이져 스캐너, 최대 스캔속도 1000scans/sec, ACB(Advanced Code Builder)를 통한 고성능 스캔기능
모델에 따른, Short, Medium, Long Range 의 스캔거리 지원, 최대 스캔거리 600mm지원
소프트웨어를 통한 Motor의 on & off기능, 사용자가 선택이 가능한 초고속 통신포트 RS232 & RS485 +RS232지원
사용자가 쉽게 셋팅 할 수 있는 전용 WINHOST 프로그램지원, IP65 Industrial Housing
사용용도 :소형 컨베이어의 분류(Sorting)시스템 ,자동 선별시스템 ,자동 포장시스템 ,라벨 검증시스템
자동 분석 및 검증시스템
DS2400A-0200 SHORT Range,Single Scan,D-sub25S Connector
DS2400A-0210 SHORT Range,Raster Scan No.1,D-sub25S Connector
DS2400A-1200 MEDIUM Range,Single Scan,D-sub25S Connector
DS2400A-1210 MEDIUM RangeRaster Scan No.1,D-sub25S Connector
DS2400A-2200 LONG Range,Single Scan,D-sub25S Connector
DS2400A-2210 LONG Range,Raster Scan No.1,D-sub25S Connector
DS4600A ST :고성능 산업용 레이져 스캐너
명암이 낮은 인쇄의 바코드까지도 판독이 우수함, 최대 스캔거리 1000mm지원, Display 및 Keypad기능, Oscillating Mirror 옵션
고온 및 저온환경에서 사용이 가능하도록 일체형 히터 및 쿨러기능, 사용자가 쉽게 셋팅 할 수 있는 전용 WINHOST 프로그램지원
IP65 Industrial Housing
사용용도 :컨베이어의 분류(Sorting)시스템 ,자동 선별시스템 ,자동 포장시스템 ,라벨 검증시스템 ,냉동창고 및 고온환경의 컨베이어 시스템
DS4600A-2200 High Resolution Read,Single Scan,D-sub25S Connector
DS4600A-2210 High Resolution Read,Raster1,D-sub25S Connector
DS4600A-2220 High Resolution Read,Raster2,D-sub25S Connector
DS4600A-2000 Medium Resolution Read,Single Scan,D-sub25S Connector
DS4600A-2010 Medium Resolution Read,Raster1,D-sub25S Connector
DS4600A-2020 Medium Resolution Read,Raster2,D-sub25S Connector
DS4600A-2100 Long Range Read,Single Scan,D-sub25S Connector
DS4600A-2005 Medium Resolution Read,Single Scan,D-sub25S Connector,with Heater
DS4600A-2015 Medium Resolution Read,Raster1,D-sub25S Connector,with Heater
DS4600A-2025 Medium Resolution Read,Raster2,D-sub25S Connector,with Heater
DS4600A-2105 Long Range Read,Single Scan,D-sub25S Connector,with Heater
DS4600A ACR :고성능 산업용 레이져 스캐너, ACR(Advanced Code Reconstruction)을 통한 고성능 스캔 , 명암이 낮은 인쇄의 바코드까지도 판독이 우수함
최대 스캔거리 1000mm지원, Oscillating Mirror 옵션, 사용자가 쉽게 셋팅 할 수 있는 전용 WINHOST 프로그램지원
IP65 Industrial Housing
사용용도 :컨베이어의 분류(Sorting)시스템 ,자동 선별시스템 ,자동 포장시스템 ,라벨 검증시스템
DS4600A-3200 High Resolution Read,ACR-decoder,Single Scan,D-sub25S Connector
DS4600A-3000 Medium Resolution Read,ACR-decoder,Single Scan,D-sub25S Connector
DS4600A-3100 Low Resolution Read,ACR-decoder,Single Scan,D-sub25S Connector
DS6300 :고성능 산업용 레이져 스캐너, ACR4(Advanced Code Reconstruction)를 통한 고성능 스캔 , 명암이 낮은 인쇄의 바코드까지도 판독이 우수함
최대 스캔거리 2000mm지원, Ethernet, Devicenet, Profibus일체형 , Display 및 Keypad기능, Oscillating Mirror 옵션
사용용도:컨베이어의 분류(Sorting)시스템 ,추적관리시스템 ,자동 포장시스템 ,공항 수화물관리 ,우편 집중국의 우편 및 소포 분류시스템
생산공정 및 품질관리
DS6300-100-010 ACR3 2STEP FOCUS,Linear,Master-Slave
DS6300-100-011 ACR3 2STEP FOCUS,Linear,Profibus-DP
DS6300-100-012 ACR3 2STEP FOCUS,Linear,Ethernet
DS6300-100-015 ACR3 2STEP FOCUS,Linear,Devicenet
DS6300-105-010 ACR3 2STEP FOCUS,Oscillating,Master-Slave
DS6300-105-011 ACR3 2STEP FOCUS,Oscillating,Profibus
DS6300-105-012 ACR3 2STEP FOCUS,Oscillating,Ethernet
DS6300-105-015 ACR3 2STEP FOCUS,Oscillating,Devicenet
DS6400 :고성능 산업용 레이져 스캐너, 오토 포커스 기능(자동스캔거리), ACR4(Advanced Code Reconstruction)를 통한 고성능 스캔
최대 스캔거리 2500mm지원, Ethernet, Devicenet, Profibus일체형, PackTrack 기능 , Display 및 Keypad기능
Oscillating Mirror 옵션
사용용도 :컨베이어의 분류(Sorting)시스템 ,추적관리시스템 ,자동 포장시스템 ,공항 수화물관리 ,우편 집중국의 우편 및 소포 분류시스템
생산공정 및 품질관리
DS6400-100-010 ACR3 Dynamic FOCUS,Linear,Master-Slave
DS6400-100-011 ACR3 Dynamic FOCUS,Linear,Profibus
DS6400-100-012 ACR3 Dynamic FOCUS,Linear,Ethernet
DS6400-100-015 ACR3 Dynamic FOCUS,Linear,Devicenet
DS6400-105-010 ACR3 Dynamic FOCUS,Oscillating,Master-Slave
DS6400-105-011 ACR3 Dynamic FOCUS,Oscillating,Profibus
DS6400-105-012 ACR3 Dynamic FOCUS,Oscillating,Ethernet
DS6400-105-015 ACR3 Dynamic FOCUS,Oscillating,Devicenet
DS6500 :고성능 산업용 레이져 스캐너, ACR4(Advanced Code Reconstruction)를 통한 고성능 스캔 , 최대 스캔거리 1800mm지원
Ethernet, Devicenet, Profibus일체형, PackTrack 기능 , Display 및 Keypad기능, Oscillating Mirror 옵션
사용용도 :컨베이어의 분류(Sorting)시스템 ,추적관리시스템 ,자동 포장시스템 ,공항 수화물관리 ,우편 집중국의 우편 및 소포 분류시스템
생산공정 및 품질관리
DX6400/DX6500...1대의 스캐너로 복수의 스캔성능발휘,고성능 산업용 Omni Directional 레이져 스캐너, Flash Dynamic 포커스기능- DX6400
Astra Electronic 포커스기능- DX6500, Ethernet, TCP/IP protocol 일체형, Display 및 3Keypad기능
사용용도:우편 집중국의 우편 및 소포 분류시스템 ,컨베이어의 분류(Sorting)시스템 ,추적관리시스템 ,자동 포장시스템
공항 수화물관리 ,생산공정 및 품질관리
DX6400-100-010 ACR3 Dynamic FOCUS,cross scan,Master-Slave
DX6400-100-012 ACR3 Dynamic FOCUS,cross scan,Ethernet
DX6500-200-010 ACR3 2Laser cross scan,Master-Slave
DX6500-200-012 ACR3 2Laser Low,cross scan,Ethernet
DS8100A : 타이어 제조공장에 현재 가장 많이 사용되는 스캐너,최고성능 산업용 레이져 스캐너, ACR4(Advanced Code Reconstruction)를 통한 고성능 스캔
Astra 기술을 이용한 스캔 포커스기능, Ethernet, TCP/IP protocol 일체형, PackTrack 기능 , Display 및 Keypad기능
사용용도:공항 수화물관리 ,컨베이어의 분류(Sorting)시스템 ,추적관리시스템 ,자동 포장시스템 ,우편 집중국의 우편 및 소포 분류시스템
생산공정 및 품질관리
DS8100A-3000 3-Laser Beam / MS / Low res / Linear
DS8100A-3005 3-Laser Beam / MS / Low res / Oscillate
DS8100A-3100 3-Laser Beam / Ethernet / Low res / Linear
DS8100A-3105 3-Laser Beam / Ethernet / Low res / Oscillate
DS8100A-3010 3-Laser Beam / MS / Medium res / Linear
DS8100A-3015 3-Laser Beam / MS / Medium res / Oscillate
DS8100A-3110 3-Laser Beam / Ethernet / edium res / Linear
DS8100A-3115 3-Laser Beam / Ethernet / Medium res / Oscillate
DS8100A-3020 3-Laser Beam / MS / High res / Linear
DS8100A-3025 3-Laser Beam / MS / High res / Oscillate
DS8100A-3120 3-Laser Beam / Ethernet / High res / Linear
DS8100A-3125 3-Laser Beam / Ethernet / High res / Oscillate
DS8100A-3030 3-Laser Beam / MS / Very High res / Linear
DS8100A-3035 3-Laser Beam / MS / Very High res / Oscillate
DS8100A-3130 3-Laser Beam / Ethernet / Very High res / Linear
DS8100A-3135 3-Laser Beam / Ethernet / Very High res / Oscillate
DS8100A-3002 3-Laser Beam / BHS / Low res / Linear
DX8200A : 우편물택배 시스템에 가장 많이 설치 운영되는모델,최고성능 산업용 Omni Directional 레이져 스캐너
ACR4(Advanced Code Reconstruction)를 통한 고성능 스캔 , Astra 기술을 이용한 스캔 포커스기능
Ethernet, TCP/IP protocol 일체형, PackTrack 기능 , Display 및 Keypad기능, 확장 파워 85-264VAC
사용용도 :공항 수화물관리 ,컨베이어의 분류(Sorting)시스템 ,추적관리시스템 ,자동 포장시스템
우편 집중국의 우편 및 소포 분류시스템 ,생산공정 및 품질관리
DX8200A-3010 3-Laser Beam / Medium Res / MS / DC24V
DX8200A-3011 3-Laser Beam / Medium Res / MS / AC110/230V
DX8200A-3110 3-Laser Beam / Medium Res / Ethernet / DC24V
DX8200A-3111 3-Laser Beam / Medium Res / Ethernet / AC110/230V
DX8200A-3210 3-Laser Beam / Medium Res / Profibus / DC24V
DX8200A-3211 3-Laser Beam / Medium Res / Profibus / AC110/230V
DX8200A-3310 3-Laser Beam / Medium Res / Devicenet / DC24V
DX8200A-3311 3-Laser Beam / Medium Res / Devicenet / AC110/230V
DX8200A-3020 3-Laser Beam / High Res / MS / DC24V
DX8200A-3021 3-Laser Beam / High Res / MS / AC110/230V
DX8200A-3120 3-Laser Beam / High Res / Ethernet / DC24V
DX8200A-3121 3-Laser Beam / High Res / Ethernet / AC110/230V
DX8200A-3220 3-Laser Beam / High Res / Profibus / DC24V
DX8200A-3221 3-Laser Beam / High Res / Profibus / AC110/230V
DX8200A-3320 3-Laser Beam / High Res / Devicenet / DC24V
DX8200A-3321 3-Laser Beam / High Res / Devicenet / AC110/230V
DX8200A-3030 3-Laser Beam / Very High Res / MS / DC24V
DX8200A-3031 3-Laser Beam / Very High Res / MS / AC110/230V
DX8200A-3130 3-Laser Beam / Very High Res / Ethernet / DC24V
DX8200A-3131 3-Laser Beam / Very High Res / Ethernet / AC110/230V
DX8200A-3230 3-Laser Beam / Very High Res / Profibus / DC24V
DX8200A-3231 3-Laser Beam / Very High Res / Profibus / AC110/230V
DX8200A-3330 3-Laser Beam / Very High Res / Devicenet / DC24V
DX8200A-3331 3-Laser Beam / Very High Res / Devicenet / AC110/230V
DX8200A-3002 3-Laser Beam / Low Res / BHS
DV9500 :산업용 VISION System, 멀티 사이드 솔루션, Linear 타입의 CCD엔진, 오토 포커스기능
초고속 컨베이어에도 사용이 가능
사용용도:택배 분류시스템 ,컨베이어의 분류(Sorting)시스템 ,우편 집중국의 우편 및 소포 분류시스템
MATRIX1000 2차원 산업용 바코드 스캐너,컴팩트타입의 우수한 성능,산업용 2차원 바코드스캐너
1차원 & 2차원바코드, Datamatrix, QR, PDF417, 우편코드 등
소형 컴팩트 타입, 1800/frames/min, 최대100code 스캔 / each frame, Code Quality Control (AIM표준)
LED Lighting System 일체형
사용용도:생산공정관리 ,PCB 생산라인 ,반도체 생산라인 tracking ,화학 및 의료분석장비 ,의약품의 포장라인
소형 자동차 부품생산라인 ,OEM(현금인출기, KIOSKS, 로터리복권기계등)
MATRIX-1021 High Resolution, CCD Multi-Code Reader
MATRIX-1031 Standard Resolution, CCD Multi-Code Reader
MATRIX-1041 Low Resolution, CCD Multi-Code Reader
MATRIX-1051 Medium Range, CCD Multi-Code Reader
MATRIX2000 2차원 산업용 바코드 스캐너 :산업용 2차원 바코드스캐너, 1차원 & 2차원바코드, Datamatrix, QR, PDF417, 우편코드등 스캔
소형 컴팩트 타입, 3600/frames/min, 최대100code 스캔 / each frame, 스캔 속도 최대 over 6m/s
Code Quality Control (AIM표준), LED Lighting System 일체형, Ethernet configuration , Data collection지원
사용용도 :생산공정관리 ,PCB 생산라인 ,반도체 생산라인 tracking ,화학 및 의료분석장비 ,의약품의 포장라인
소형 자동차 부품생산라인 ,OEM(현금인출기, KIOSKS, 로터리복권기계등)
MATRIX-1000 CCD Multi-Code Reader
MATRIX-2000 CCD Multi-Code Reader
MATRIX-2011 Ultra-High Resolution, CCD Multi-Code Reader
MATRIX-2021 High Resolution, CCD Multi-Code Reader
MATRIX-2031 Standard Resolution, CCD Multi-Code Reader
MATRIX-2041 Low Resolution, CCD Multi-Code Reader
MATRIX-2051 Medium Range, CCD Multi-Code Reader
MATRIX-2061 Long Range, CCD Multi-Code Reader
MATRIX-2025 High Resolution, CCD Multi-Code Reader,Mega pixcel
MATRIX-2045 Low Resolution, CCD Multi-Code Reader,Mega Pixcel
MATRIX-2055 Medium Range, CCD Multi-Code Reader,Megapixcel
MATRIX-2111 Ultra-High Resolution, CCD Multi-Code Reader,Ethernet interface
MATRIX-2121 High Resolution, CCD Multi-Code Reader,Ethernet interface
MATRIX-2131 Standard Resolution, CCD Multi-Code Reader,Ethernet interface
MATRIX-2141 Low Resolution, CCD Multi-Code Reader,Ethernet interface
MATRIX-2151 Medium Range, CCD Multi-Code Reader,Ethernet interface
MATRIX-2161 Long Range, CCD Multi-Code Reader,Ethernet interface
MATRIX-2121-R High Resolution, CCD Multi-Code Reader,Ethernet interface,90 degree window
MATRIX-2141-R Low Resolution, CCD Multi-Code Reader,Ethernet interface,90 degree window
MATRIX-2145 Low Resolution, CCD Multi-Code Reader,Ethernet interface,Mega Pixel
MATRIX-2155 Medium Range, CCD Multi-Code Reader,Ethernet interface,Mega Pixel
MATRIX-2125 High Resolution, CCD Multi-Code Reader,Ethernet interface,Mega Pixel
|
|
|
|
Copyrights(c) 2001 ICOM INFORMATION SYSTEM. All rights reserved. |
| |
