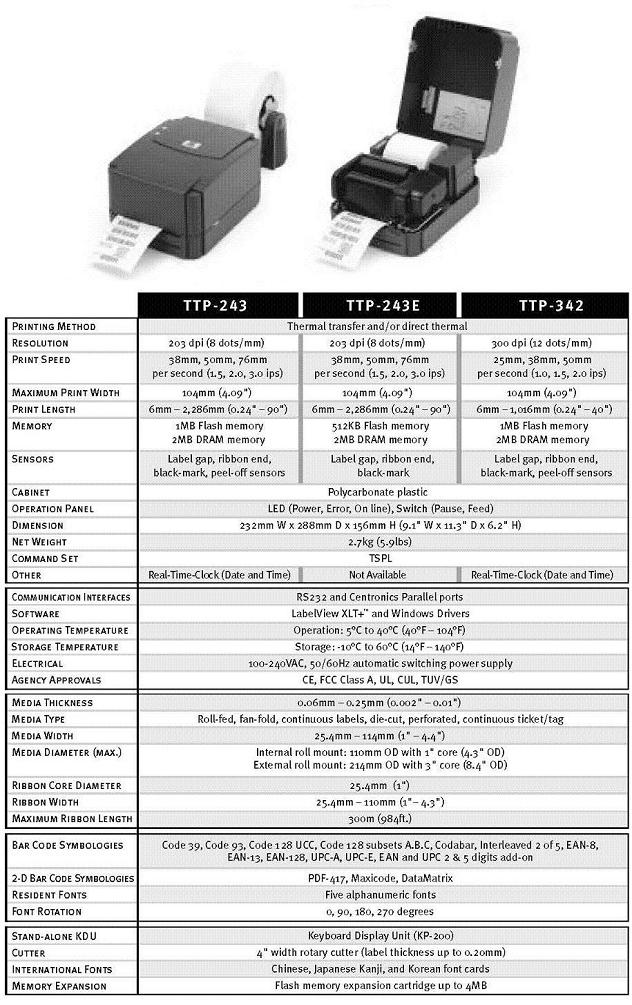

Printer	Printing Method Thermal Transfer and/or Direct Thermal
Mechanism	Printhead Density 203dpi(8dots/mm) Maximum Print Width 104mm(4.09") Maximum Print Length 2,286mm(90") Printing Speed 38mm-76mm per second(1.5-3.0ips)
Enclosure	Material Plastic Operation Panel LED(Power, Error, On line), Switch(Pause, Feed) Dimension 232mm x 288mm x 156mm( W x D x H) Net Weight 2.2kg
Hardware	Sensors Label gap, Ribbon end, Black-mark, Head open, Case open, Peel-off Memory 1MB Flash Rom, 2 MB DRAM Interface RS232 AND CENTRONICS Power 100-240V universal switching power supply Other Real-Time-Clock
Firmware	Firmware Fonts Five alpha-numeric fonts, OCR-A, OCR-B Font Direction 0,90,180,270 degrees Bar Code Syhmbologies Code 39, Code 93, Code128UCC, Code 128 subsets A.B.C, Codabar Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 digital add-on 2-D Bar Code Symbologies PDF-417, Maxicode, DataMatrix Command Set TSPL(Taiwan Semiconductor Printer Language)
Software	Application Software Label Today Windows Driver For Windows3.1, 95, NT4.0
Media	Label Type Continuous, die-cut, fan-fold, and ticket etc. Tag is optional. Label Width 25.4mm-114mm(1"-4.4") Label Length 10mm-2,286mm(0.4"-90") Label Thickness 0.06mm-0.25mm(0.002"-0.01") Roll Size 214mm OD(8.4" OD) Roll Core Diameter 25mm-77mm(1"-3") Black-Mark Hight 1.5mm-3mm(0.06"-0.12") Ribbon Width 25.4mm-110mm(1"-4") Ribbon Length 300m(984ft.)

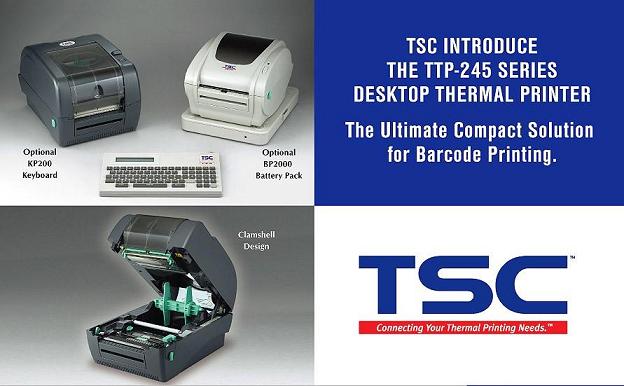

Others	Reliability Head:30Km Environment Operation:5¡­40 , 30¡­85% Storage:-10¡­60 , 20¡­95% Safety CE Class A, FCC Class A, UL, CUL, TUV/GS Options Keyboard Display Unit(KP-200) 4"width rotary cutter(label thickness up to 0.2mm) Font cartridges(Chinese, Japanese Kanji, Korean)
